TECHNICAL SPECIFICATIONS
Digital Meters:
• Ammeter 200uA DC.
• Voltmeter 20V DC
Power supplies:
• DC Supply IC Regulated 0-6V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• IN60
• Voltage Control through Potentiometer.
• Thermometer
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• Multimeter

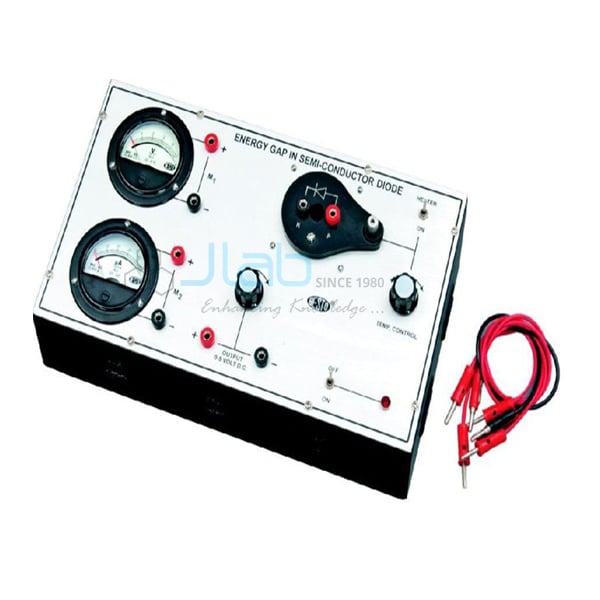

PBE-E076 ENERGY BAND GAP OF PN JUNCTION DIODE
In Stock
Energy Band Gap Of Pn Junction Diode is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E076. Voltmeter 20V DC Power supplies. DC Supply IC Regulated 0-6V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Voltage Control through Potentiometer. Thermometer SALIENT FEATURES. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 12”x 8” OPTIONAL ACCESSORIES.
