TECHNICAL SPECIFICATIONS
Digital Meters:
• Ammeter 20mA/200uA DC.
• Voltmeter 15V DC.
• Voltmeter 15V DC.
Power supplies:
• DC Supply IC Regulated 15V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• Reactor Diode
• Voltage Control through Potentiometer.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
• Multimeter

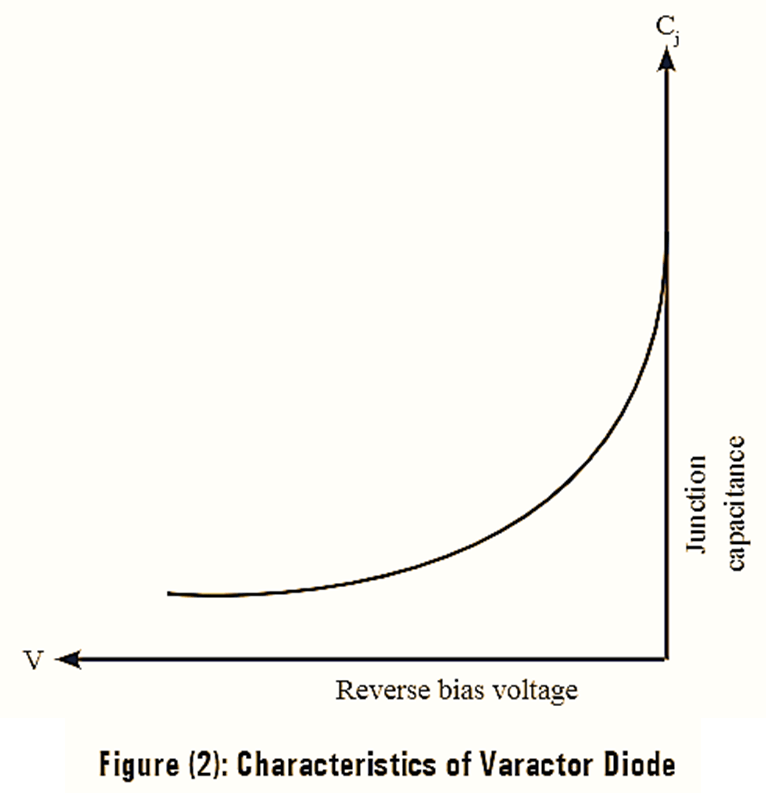

PBE-E084 VARACTOR DIODE DIODE PBE-E084 VARACTOR DIODE CHARACTERISTICS (DIGITAL)PBE-E084 VARACTOR DIODE CHARACTERISTICS (DIGITAL) CHARACTERISTICS (DIGITAL)084 VARACTOR DIODE CPBE-E084 VARACTOR DIODE CHARACTERISTICS (DIGITAL)CHARACTERISTICS (DIGITAL)
In Stock
Varactor Diode Diode Pbe E084 Varactor Diode Characteristics Digital Pbe E084 Varactor Diode Characteristics Digital Characteristics Digital 084 Varactor Diode Cpbe E084 Varactor Diode Characteristics Digital Characteristics Digital is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E084. DC Supply IC Regulated 15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are.
