TECHNICAL SPECIFICATIONS:
Power Supplies:
• Dual DC Power Supply IC Regulated +15V DC, 150mA.
• DC Power Supply IC Regulated 0-5V DC, 150mA.
• DC Power Supply IC Regulated 0-9V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Digital Meter:
• Voltmeter 20V
Components are mounted on the panels are:
• 741 IC (Op-amp)
• Resistors
• Capacitors
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 10”x8”
OPTIONAL ACCESSORIES:
• Multimeter

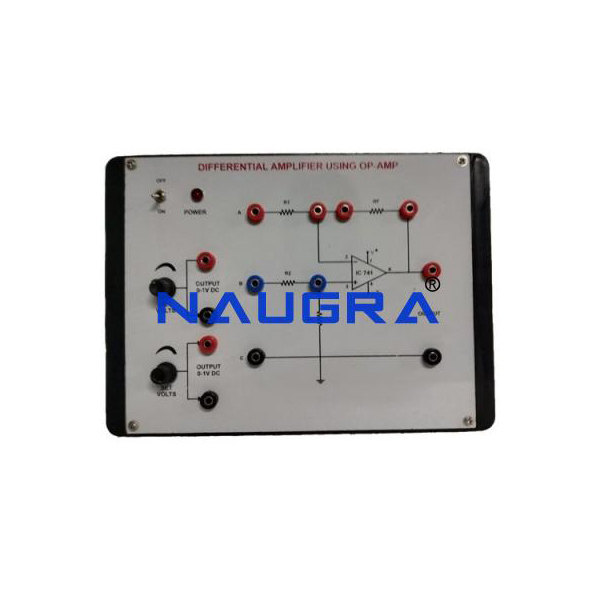

POA-E102 OP-AMP AS DIFFERENTIAL AMPLIFIER TRAINER
In Stock
Op Amp As Differential Amplifier Trainer is an SSI India product in the OPERATIONAL AMPLIFIER TRAINER category. Key specifications include SKU: POA-E102. TECHNICAL SPECIFICATIONS: Power Supplies. Dual DC Power Supply IC Regulated +15V DC, 150mA. DC Power Supply IC Regulated 0-5V DC, 150mA. DC Power Supply IC Regulated 0-9V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Digital Meter. Voltmeter 20V Components are mounted on the panels are.
