TECHNICAL SPECIFICATIONS:
Power Supplies:
• Dual DC Power Supply IC Regulated +15V DC, 150mA.
• Fixed IC Regulated +5V DC, 150mA.
• DC Power Supply IC Regulated 0-12V DC, 150mA.
• DC Power Supply IC Regulated 0-12V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Digital Meter:
• Voltmeter 20V
Components are mounted on the panels are:
• 741 IC (Op-amp)
• Resistors
• Capacitors
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
• Multimeter

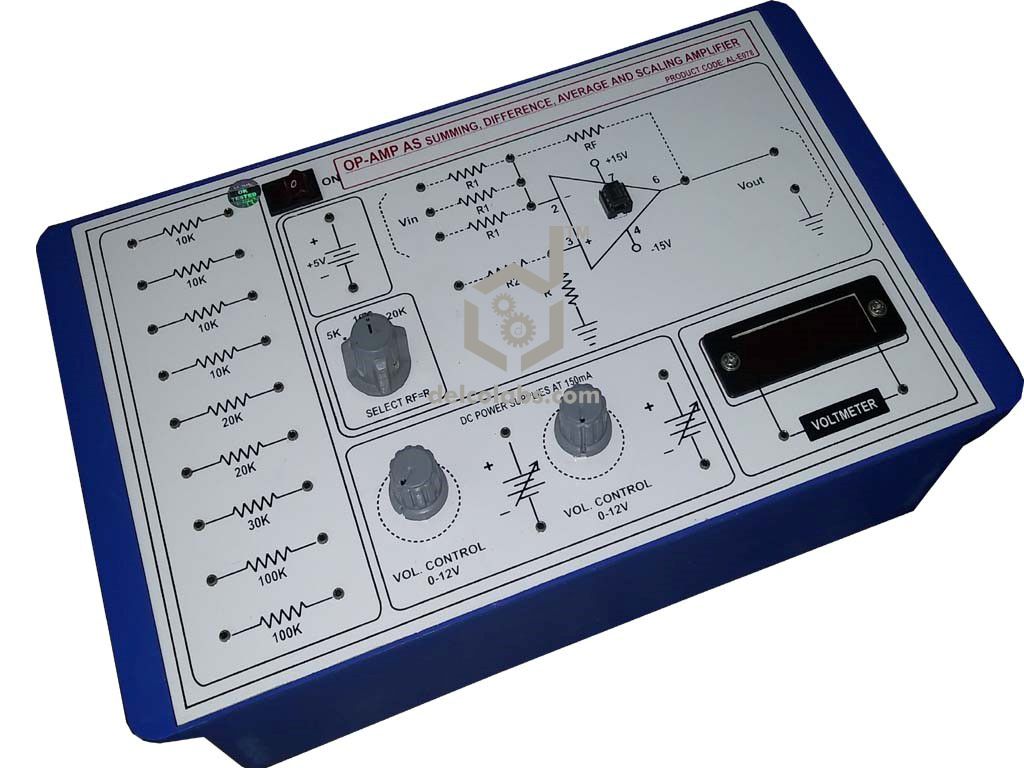

POA-E078 OP-AMP AS SUMMING, DIFFERENCE, AVERAGE AND SCALING AMPLIFIER
In Stock
Op Amp As Summing, Difference, Average And Scaling Amplifier is an SSI India product in the OPERATIONAL AMPLIFIER TRAINER category. Key specifications include SKU: POA-E078. TECHNICAL SPECIFICATIONS: Power Supplies. Dual DC Power Supply IC Regulated +15V DC, 150mA. Fixed IC Regulated +5V DC, 150mA. DC Power Supply IC Regulated 0-12V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Digital Meter. Voltmeter 20V Components are mounted on the panels are.
