TECHNICAL SPECIFICATIONS:
Power Supplies:
• Dual DC Power Supply IC Regulated +15V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• 741 IC (Op-amp)
• Resistors
• Capacitors
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• CRO
• Function Generator

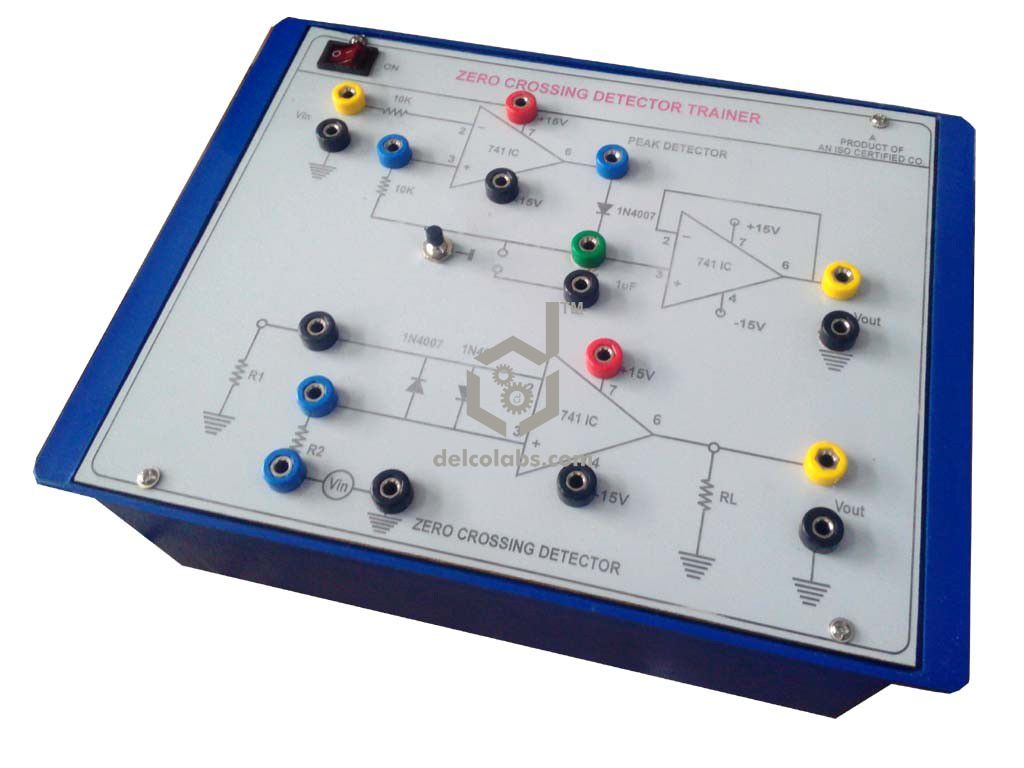

POA-E627 OP-AMP AS ZERO CROSSING DETECTOR AND PEAK DETECTOR TRAINER
In Stock
Op Amp As Zero Crossing Detector And Peak Detector Trainer is an SSI India product in the OPERATIONAL AMPLIFIER TRAINER category. Key specifications include SKU: POA-E627. TECHNICAL SPECIFICATIONS: Power Supplies. Dual DC Power Supply IC Regulated +15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Capacitors SALIENT FEATURES. Connections are brought out through 4mm Colored Sockets.
