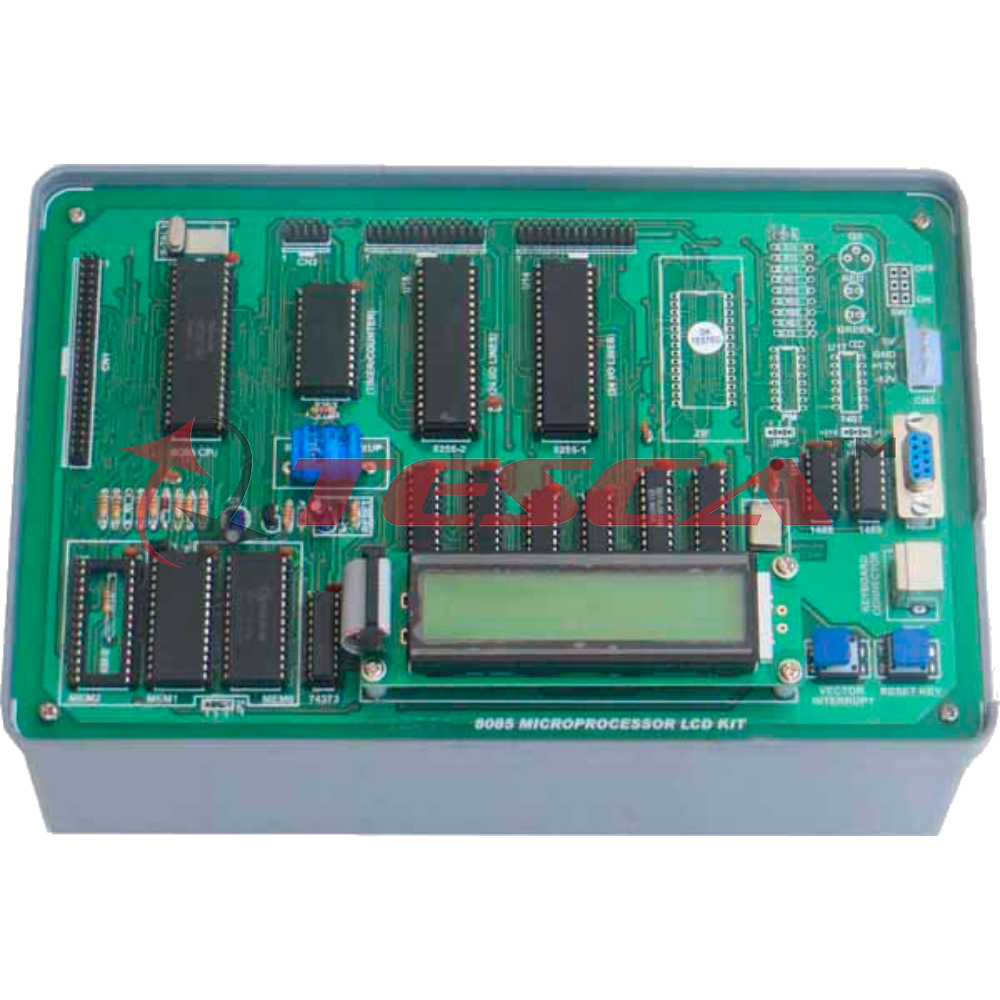

PMM-E441A 8085 MICROPROCESSOR TRAINER (LCD)

TECHNICAL SPECIFICATIONS:
• CPU : 8085 CPU operating at 6.144 MHz
• ROM : 8K bytes of Powerful Monitor Program using 27512 EPROM
• RAM : 8K bytes of RAM using 6264 with Battery
• Memory Expansion :Backup using NICD Battery, up to 56KB
• Timer/Counter: Three Channel Timer/Counter using 8253 brought out at 10 Pins FRC Connector.
• I/O Lines: 24 I/O lines provided through 8255 brought out at 26 Pins FRC Connector.
• RS232C Interface : Through SID/SOD lines
• Modes of commands : Hex Key pad Mode, Serial Mode
• Display : Six Digit Seven Segment Display using 8279
• Keyboard Downloading/Uploading : 28Key’s Hex Keypad using 8279 Keyboard Display Controller
• Bus: All address, data & control lines are available on KXT Bus 50 pin FRC Connector.
• Power Supply : 230 V ±10%, 50/60 Hz
• Power Consumption : 3 VA approximately
• Dimensions (mm) : W 190 x D 279 x H 95
• Weight : 2.8 Kg. approximately
SALIENT FEATURES:
• A self-contained Trainer
• Built in DC Power Supply
• Fully documented operating manual
• All IC’s are mounted on IC Sockets.
• Bare board Tested Glass Epoxy SMOBC PCB is used.
• 8K Bytes of EPROM with 8K bytes of Battery Backup RAM.
• 24 I/O Lines, Three Channel Timer/Counter, PC Serial Interface.
• Seven Segment Display with 28 Keys Hex Keypad. Power-full Command like Single Stepping, Break
• Point, Full Clock Execution, Examine Memory/Register. Uploading & Downloading to and from PC in windows98/XP/NT.
• Attractive Wooden enclosures of Light weight
• Australian Pine Wood.
• Compact Size
• 2 Year Warranty
OPTIONAL ACCESSORIES:
• No
