TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Supply 9V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Meters:
• LCD Display 16×2 (Green Display)

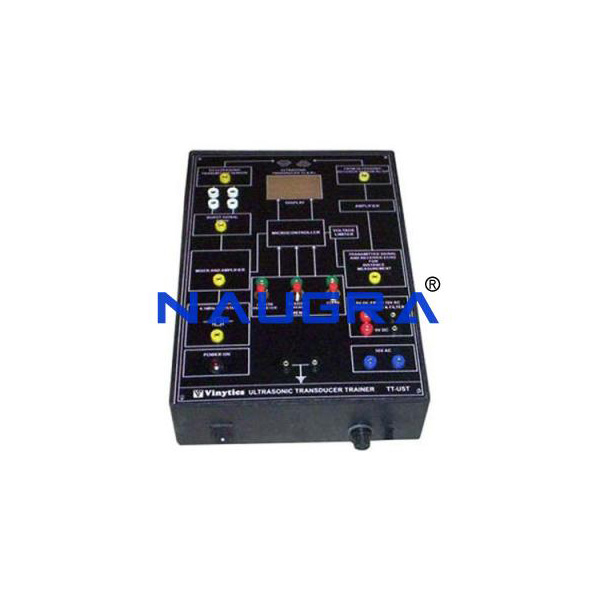

Components are mounted on the panels are:
• Ultrasonic (Transmitter)
• Ultrasonic Receiver
• A timing and time reference section
• Adequate no. of other electronic components
• Microcontroller Based
• Sensor will be connected to RS232 Connector
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• No
