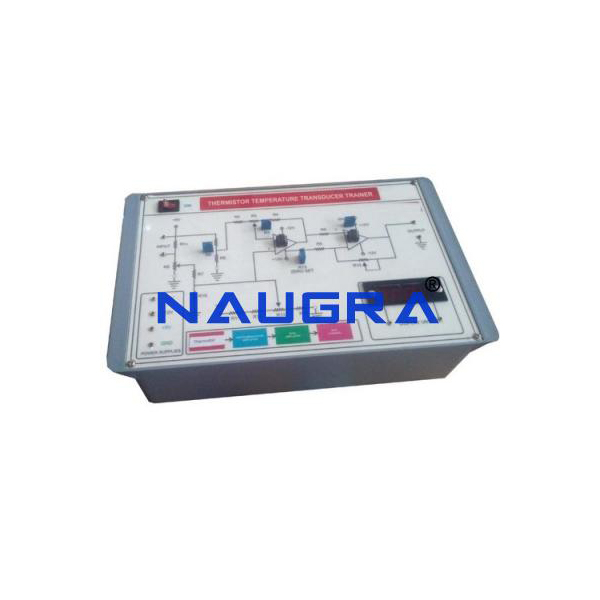

TECHNICAL SPECIFICATIONS:
Digital Meters:
- Voltmeter 200mV DC.
Power Supplies:
- DC Supply IC Regulated +12V, +5V DC, 150mA.
- Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
- Thermistor
- Variable Resistor
- 741 IC
- Electrical Kettle as Heating Element.
- Thermometer
SALIENT FEATURES:
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Fuse for Short Circuit protection
- Instruction manual.
- Connections are brought out through 2mm Colored Sockets.
- Patch Cords 2mm.
- The trainer is housed in ABS Plastic cabinet.
- Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
-
-
- Multimeter
- Digital Thermometer
-
