SPECIFICATIONS:
Kit comprises of 2 Digital Meters:
Voltmeter 200V DC
Ammeter 20A DC
Power supplies:
Isolated Supply 0-22 or 26V AT 2A.

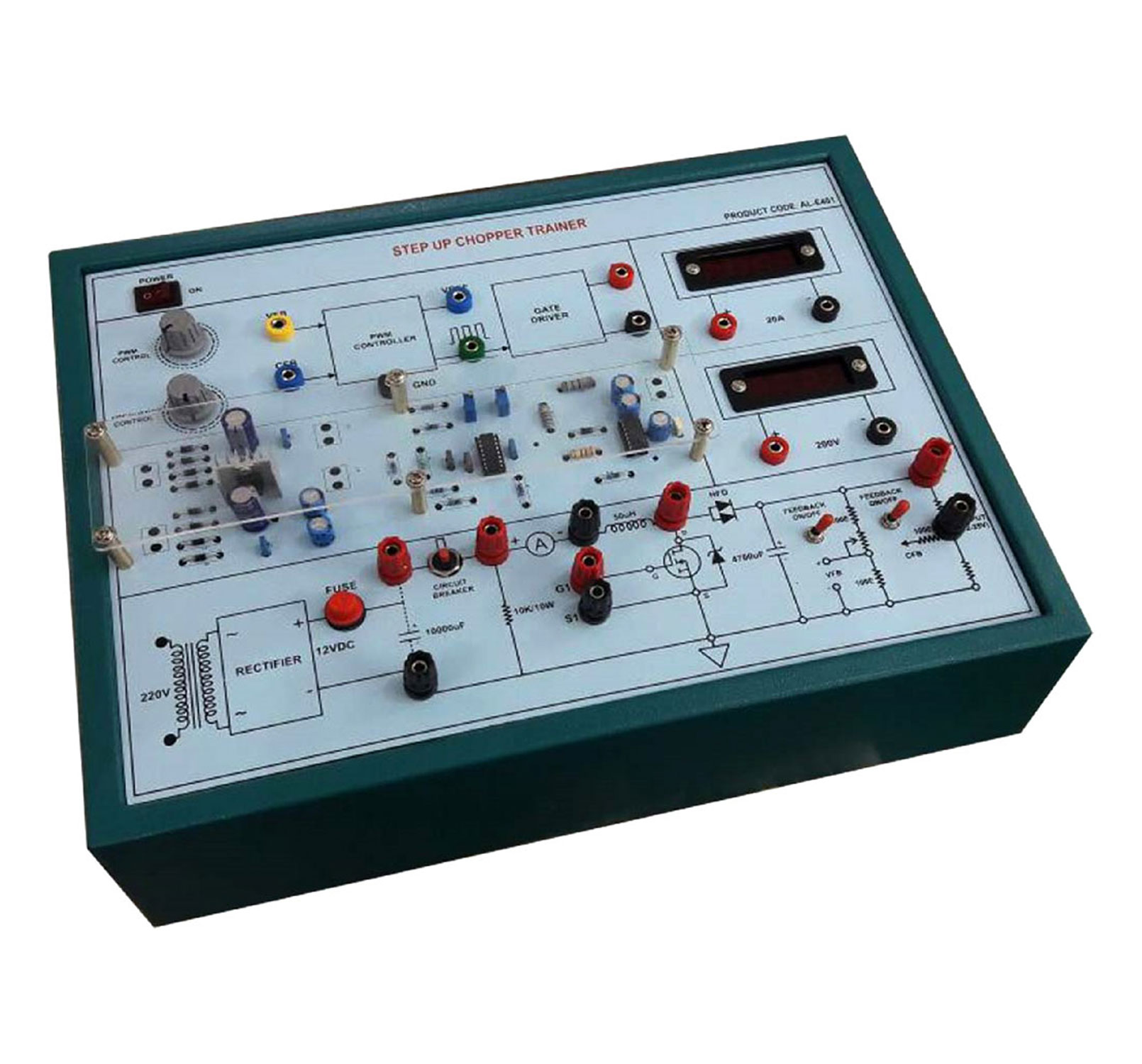

Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
Load (Rheostat)
Fuse for Short Circuit protection
Overload Protection Through Circuit Breaker
Components are mounted on the panels are:
Mosfet IRF540
PWM Pulse Generator Circuit.
Frequency Control Through Potentiometer
Salient Features:
Instruction manual.
Protection Cover.
Operated on Mains power 230V, 50Hz.
Patch Cords 4mm.
Supply provided through the 3 pin computer socket with appropriate fuse
The trainer is housed in Metal cabinet.
Size of the trainer set 15”x11”
Optional Accessories:
CRO.
