TECHNICAL SPECIFICATIONS
Power Supplies:
• Power Supply 0-15V, 1A
• Operated on Mains power 230V, 50Hz +10%
Null Detector:
• Digital Galvanometer 200mV
Components are mounted on the panels are:
• Arm, R1 Variable Resistance through Rotary Switch
• Arms, R2 10 Different Fixed Resistance are provided on Board
• Arm, R3 Variable Resistance through Rotary Switch
• Arms, Rx Six Different Values of Unknown Resistor are provided Through Rotary Switch
• Arm, r1 One Fixed Resistor is provided on board
• Arm, r2 One Fixed Resistor is provided on board
SALIENT FEATURES:

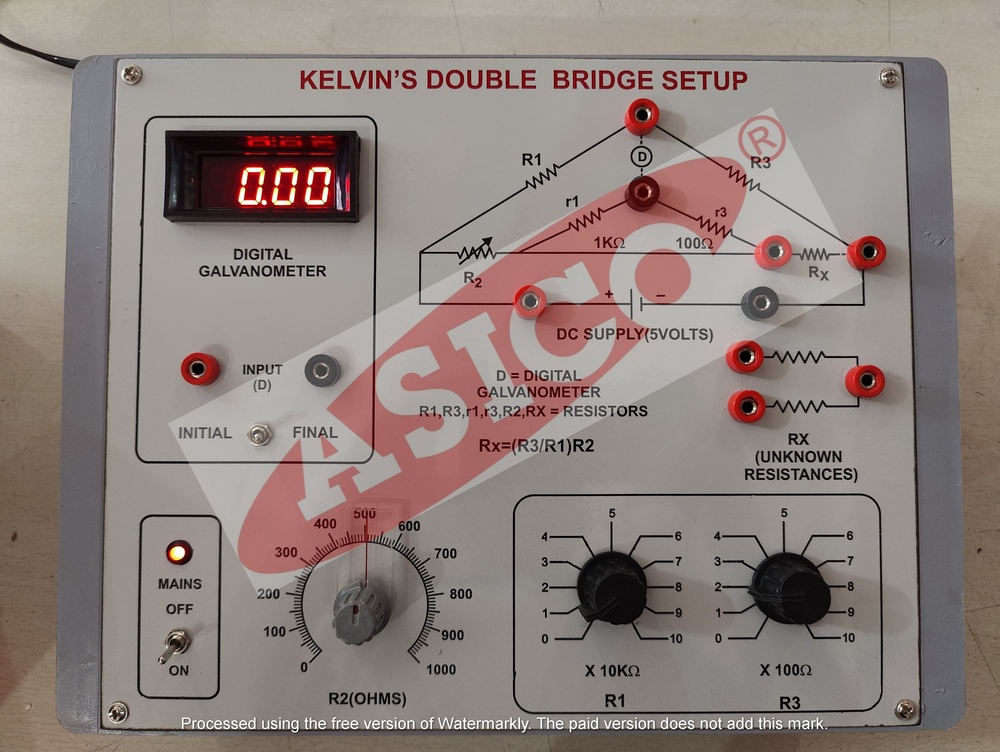

• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols
• Instruction manual
• Connections are brought out through 4mm Colored Sockets
• Patch Cords 4mm
• The trainer is housed in ABS Plastic cabinet
• Size of the trainer set 12”x10”
OPTIONAL ACCESSORIES:
Digital Multimeter.
