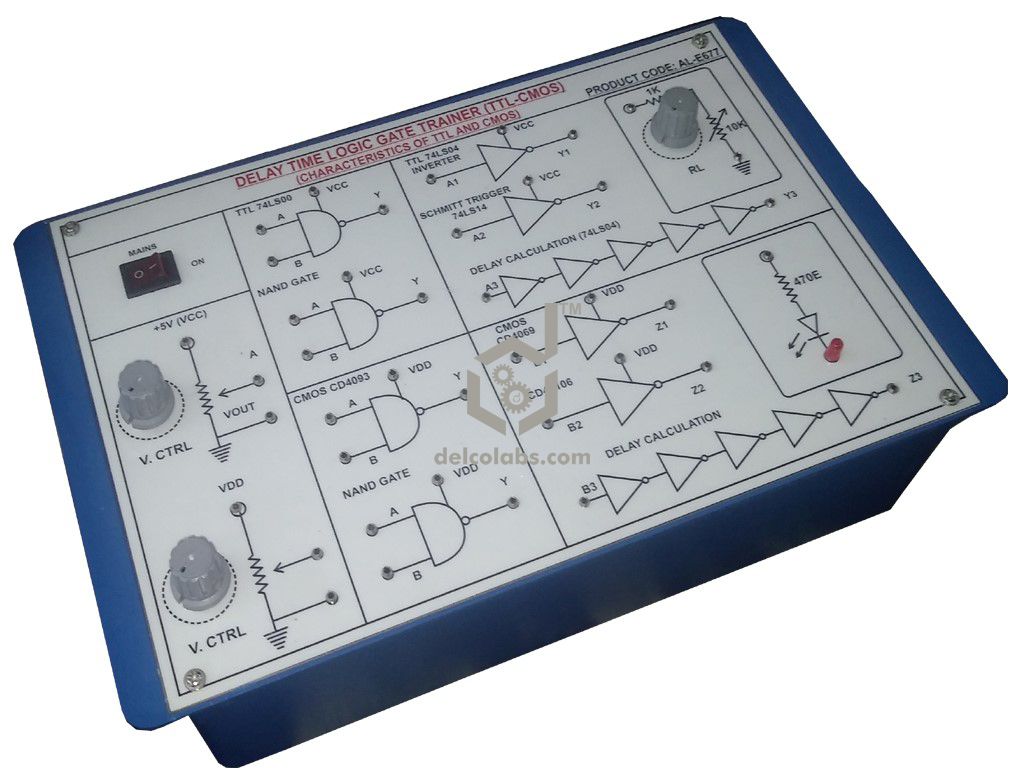

PDE-E677 TTL AND CMOS CHARACTERISTICS TRAINER
DESCRIPTION:
SCOPE OF LEARNING:
• Study of Delay time in TTL and CMOS
• Characteristics of TTL and CMOS
TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Power Supply 0-5V,150mA
• DC Power Supply 0-15V,150mA
• Operated on Mains power 230V, 50Hz +10%
TECHNICAL SPECIFICATIONS:
• One independent buffered logic level indicators for High / Low status
• TTL NAND Gate and Not gates are provided
• CMOS NAND Gate and Not gates are provided
• TTL and CMOS Not gates are cascaded connected for Delay calculation.
• Variable Potentiometer as R Load.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
No
