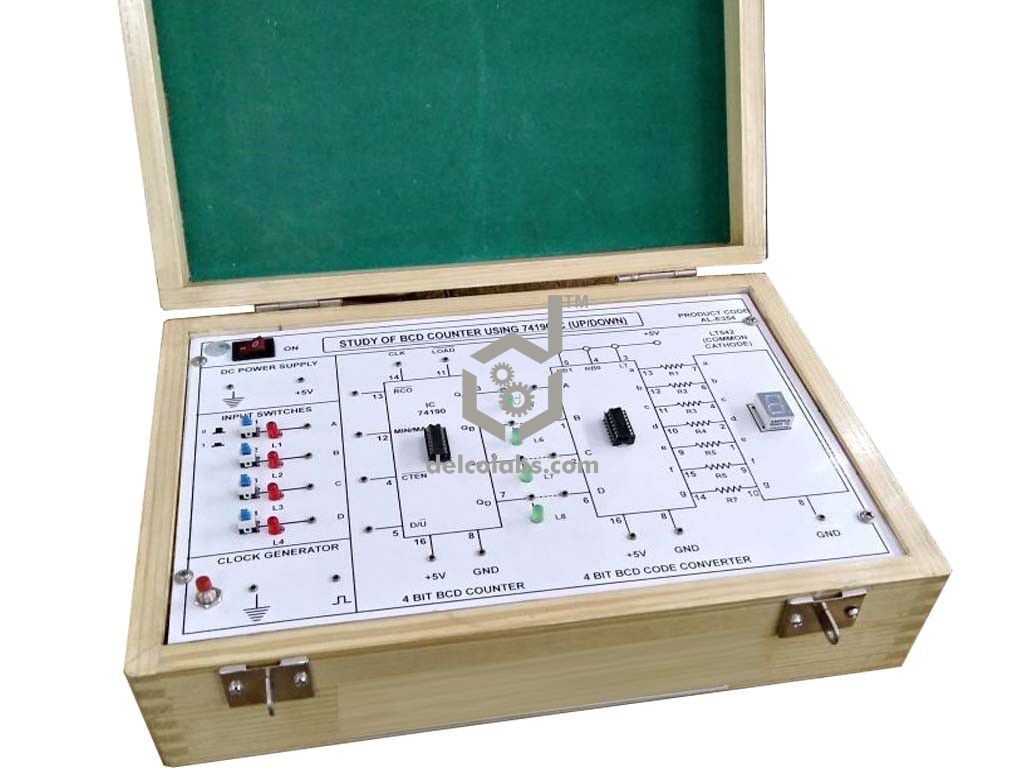

PDE-E354 STUDY OF BCD COUNTER USING 74190 IC (UP-DOWN)
DESCRIPTION:
SCOPE OF LEARNING:
• BCD/ Decade Counter Using 74190 IC
TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Power Supply +5V,150mA
• Operated on Mains power 230V, 50Hz +10%
TECHNICAL SPECIFICATIONS:
• Four independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination.
• Four independent buffered logic level indicators for High / Low status
• IC 74190 is provided on board with Combinational Circuit.
• Clock Generator Mono Pulsar given on Board.
• One LT542 is provided with Driver IC 7447 for BCD Display.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols
• Instruction manual.
• Connections are brought out through 2mm Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
