TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Power Supply +5V,150mA
• Operated on Mains power 230V, 50Hz +10%
TECHNICAL SPECIFICATIONS:
• Three independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination.
• Two independent buffered logic level indicators for High / Low status
• Circuit with OR, AND & Ex-OR Gate given on board.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 10”x8”
OPTIONAL ACCESSORIES:
No

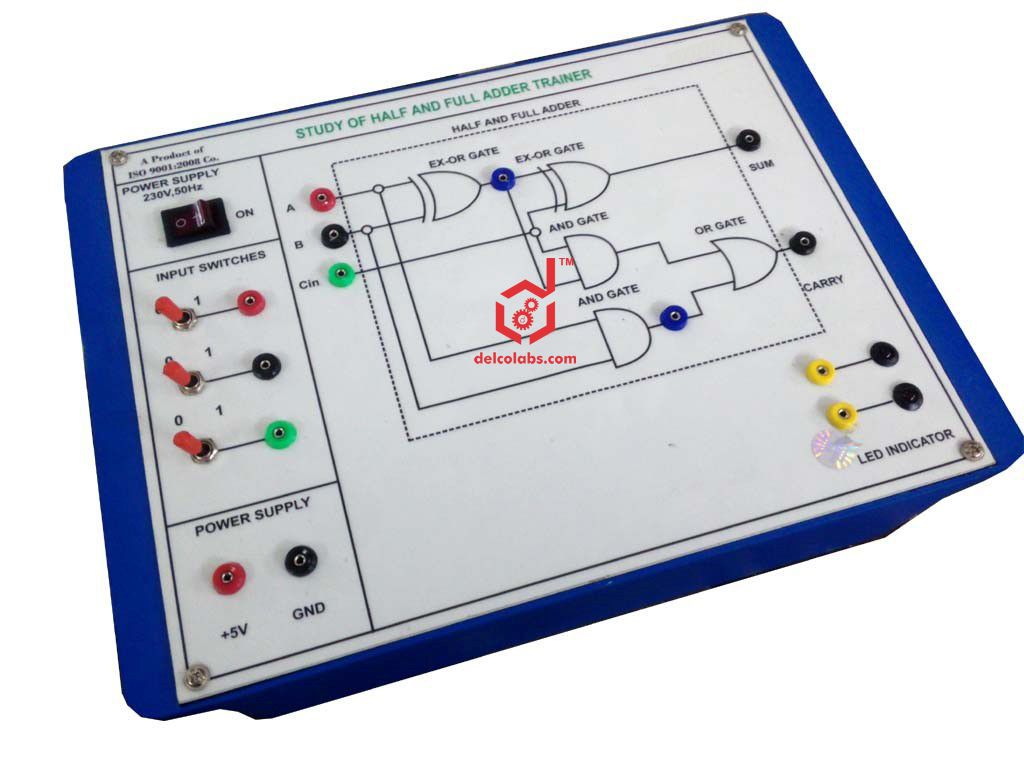

PDE-E130 HALF AND FULL ADDER TRAINER USING TTL GATE
In Stock
Half And Full Adder Trainer Using Ttl Gate is an SSI India product in the Digital Electronics category. Key specifications include SKU: PDE-E130. TECHNICAL SPECIFICATIONS: Power Supplies. DC Power Supply +5V,150mA. Operated on Mains power 230V, 50Hz +10% TECHNICAL SPECIFICATIONS. Connections are brought out through 2mm Colored Sockets. Size of the trainer set 10”x8” OPTIONAL ACCESSORIES: No. Two independent buffered logic level indicators for High / Low status.
