TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Power Supply +5V,150mA
• DC Power Supply +12,150mA
• DC Power Supply for Reference Voltage 0-5V,150mA
• Operated on Mains power 230V, 50Hz +10%
• Generator:
• A.F. Generator 1KHz/2KHz Variable Amplitude
• Sampling Frequency 8KHZ-64KHZ
TECHNICAL SPECIFICATIONS:
• Eight independent buffered logic level indicators for High / Low status
• TL074 IC for Audio Amplifier
• DG211 IC for Sampling Circuit.
• ADC 0809 IC given on board with block diagram
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
No

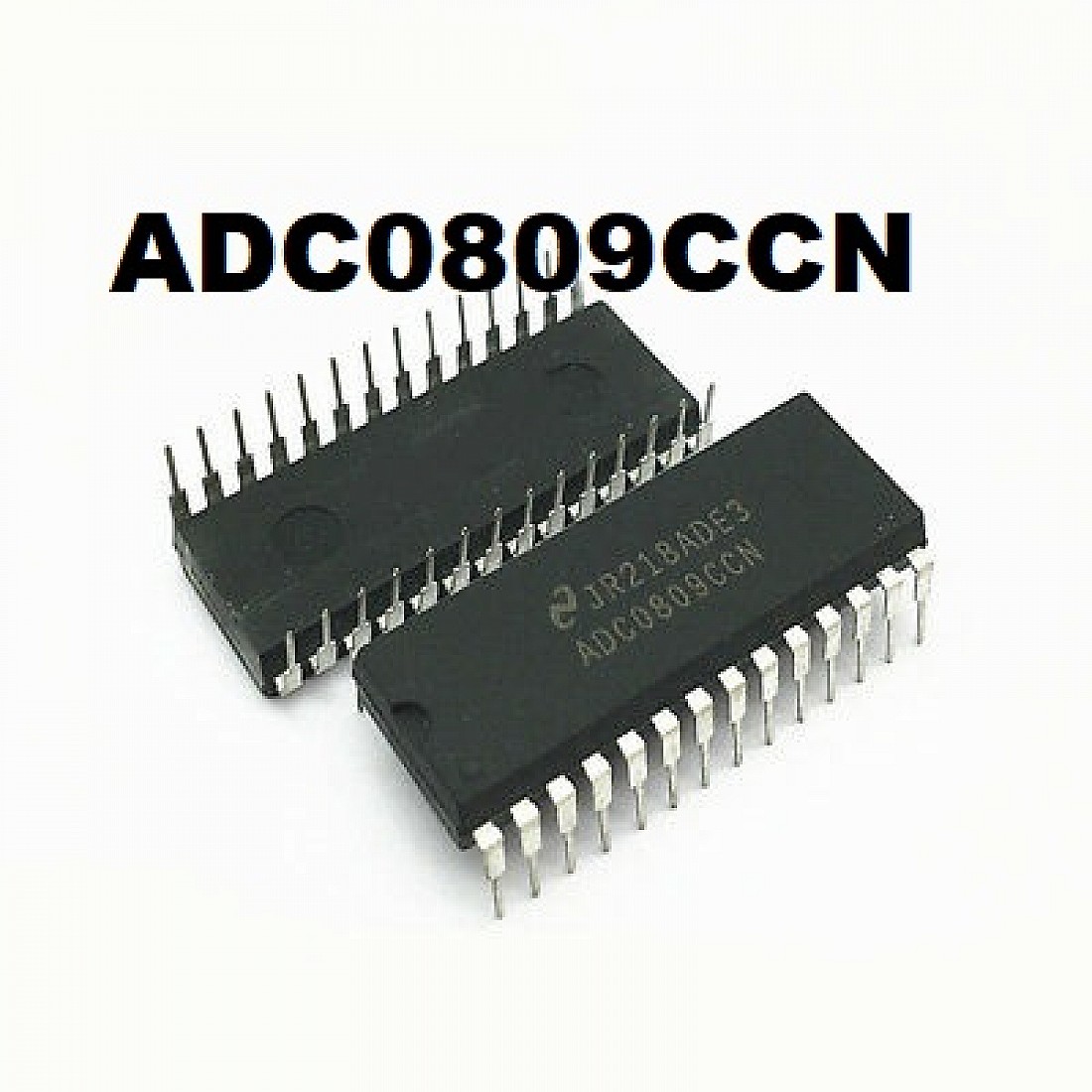

PDE-E080A ANALOG TO DIGITAL CONVERTER USING ADC0809 IC
In Stock
Analog To Digital Converter Using Adc0809 Ic is an SSI India product in the Digital Electronics category. Key specifications include SKU: PDE-E080A. TECHNICAL SPECIFICATIONS: Power Supplies. DC Power Supply +5V,150mA. DC Power Supply +12,150mA. DC Power Supply for Reference Voltage 0-5V,150mA. Operated on Mains power 230V, 50Hz +10%. Generator 1KHz/2KHz Variable Amplitude. Sampling Frequency 8KHZ-64KHZ TECHNICAL SPECIFICATIONS.
