TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Power Supply +5V,150mA
• Operated on Mains power 230V, 50Hz +10%
TECHNICAL SPECIFICATIONS:
• Twenty One independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination.
• Sixteen independent buffered logic level indicators for High / Low status
• And gate operation given onboard.
• IC for Multiplexing 74150 and 74153 is provided on board with Combinational Circuit.
• IC for DE multiplexing 74154 and 74138 is provided on board with Combinational Circuit.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 2mm Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
No

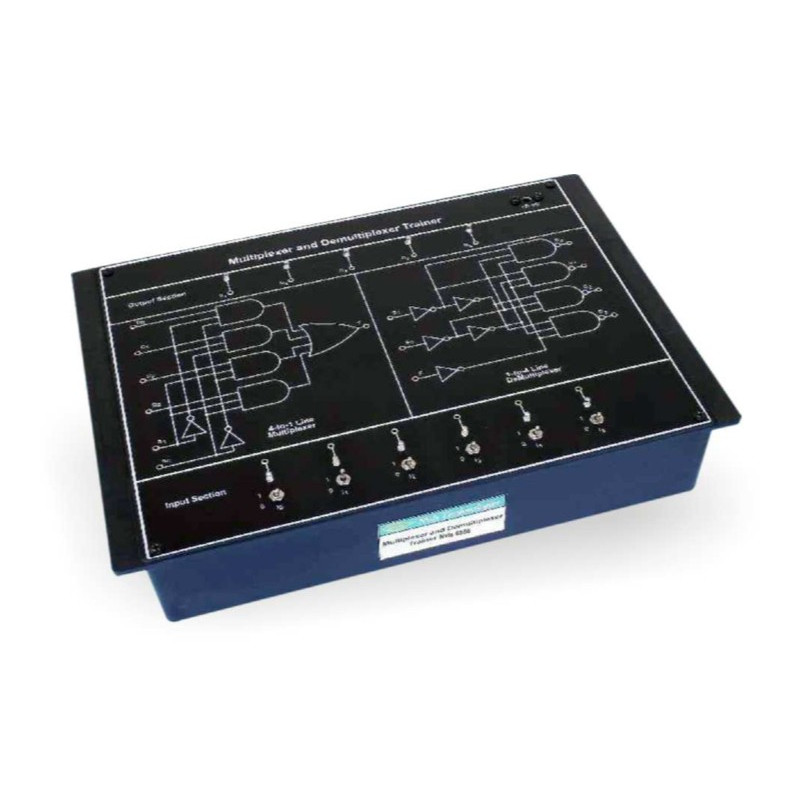

PDE-E035 MULTIPLEXER AND DEMULTIPLEXER TRAINER
In Stock
Multiplexer And Demultiplexer Trainer is an SSI India product in the Digital Electronics category. Key specifications include SKU: PDE-E035. TECHNICAL SPECIFICATIONS: Power Supplies. DC Power Supply +5V,150mA. Operated on Mains power 230V, 50Hz +10% TECHNICAL SPECIFICATIONS. IC for Multiplexing 74150 and 74153 is provided on board with Combinational Circuit. IC for DE multiplexing 74154 and 74138 is provided on board with Combinational Circuit.
