TECHNICAL SPECIFICATIONS:
Power Supplies:
• DC Power Supply +5V,150mA
• Operated on Mains power 230V, 50Hz +10%
TECHNICAL SPECIFICATIONS:
• Three independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination.
• Two independent buffered logic level indicators for High / Low status
• Circuit with OR, AND, Not, Nand, Nor, Ex-Nor & Ex-OR Gate given on board.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 10”x8”
OPTIONAL ACCESSORIES:
No

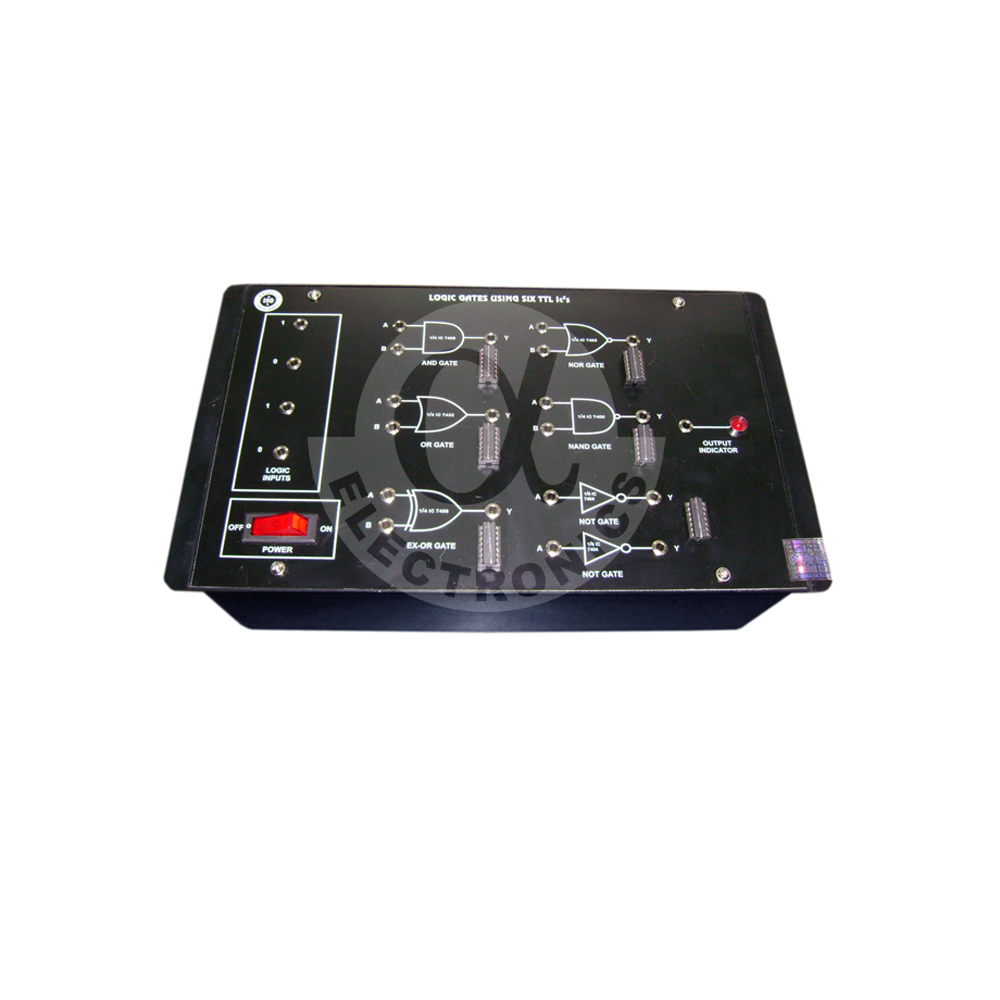

PDE-E007 LOGIC GATE TRAINER USING TTL IC
In Stock
Logic Gate Trainer Using Ttl Ic is an SSI India product in the Digital Electronics category. Key specifications include SKU: PDE-E007. TECHNICAL SPECIFICATIONS: Power Supplies. DC Power Supply +5V,150mA. Operated on Mains power 230V, 50Hz +10% TECHNICAL SPECIFICATIONS. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 10”x8” OPTIONAL ACCESSORIES: No. Two independent buffered logic level indicators for High / Low status.
