TECHNICAL SPECIFICATIONS:
Built in signal sources :
Sine wave : 0-1V (min.) variable amplitude.
Square wave : 0-1V (min.) variable amplitude.
Power Supply:
• IC regulation in controller circuit power supplies
• Operated on Mains power 230V, 50Hz +10%
Features:
• Simulated electronic relay using high speed IC’s.
• Simulated 2nd order linear plant.
• Facility for displaying x and x signals.
• Dead zone variable from 0-600mV app.
• Hysteresis variable from 0-500 mV app.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit on Metal Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 4mm Sockets.
• Patch Cords 4mm.
• The trainer is housed in Metal cabinet.
• Size of the trainer set 18”x 7”
OPTIONAL ACCESSORIES:
• No

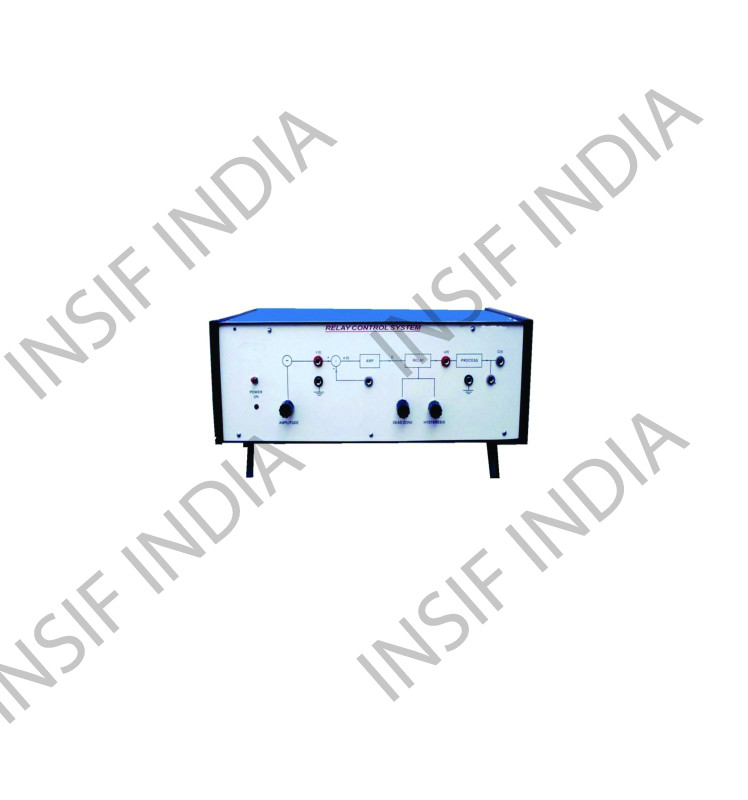

PCL-E727 RELAY CONTROL SYSTEM TRAINER
In Stock
Relay Control System Trainer is an SSI India product in the CONTROL LAB category. Key specifications include SKU: PCL-727. TECHNICAL SPECIFICATIONS: Built in signal sources : Sine wave : 0-1V (min.) variable amplitude. Square wave : 0-1V (min.) variable amplitude. IC regulation in controller circuit power supplies. Operated on Mains power 230V, 50Hz +10% Features. Simulated 2nd order linear plant. Dead zone variable from 0-600mV app.
