TECHNICAL SPECIFICATIONS:
Digital Meters:
• RPM Indicator for Speed Measurement
• Current Meter for Load Measurement
Power Supply:
• IC regulation in controller circuit power supplies
• 110V AC Isolated Power Supply For Motor.
o Operated on Mains power 230V, 50Hz +10%
Features:
• Two precision servo-potentiometers full 360 degree rotation
o Calibrated dials for command and output position with 1 degree resolution
o Motor controller circuit (thyristorised)
o 110 volt two phase AC servo motor (60 RPM synchronous)
o Waveform capture/display card
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit on Metal Board sheet with well printed circuits and symbols.
o Instruction manual.
o Connections are brought out through 4mm Sockets.
o Patch Cords 4mm.
o The trainer is housed in Metal cabinet.
o Size of the trainer set 18”x7”
OPTIONAL ACCESSORIES:
• No

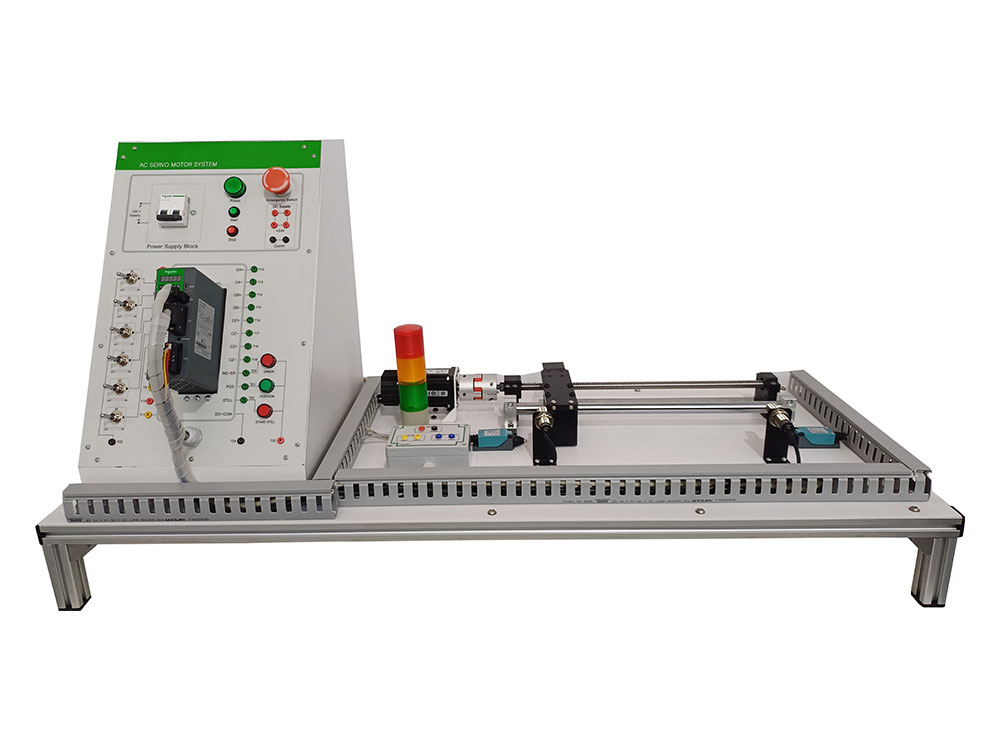

PCL-E537 AC POSITION SERVO CONTROL SYSTEM TRAINER
In Stock
AC Position Servo Control System Trainer is an SSI India product in the CONTROL LAB category. Key specifications include SKU: PCL-537. Current Meter for Load Measurement Power Supply. IC regulation in controller circuit power supplies. 110V AC Isolated Power Supply For Motor. o Operated on Mains power 230V, 50Hz +10% Features. o Connections are brought out through 4mm Sockets. o Size of the trainer set 18”x7” OPTIONAL ACCESSORIES.
