TECHNICAL SPECIFICATIONS
Power supplies:
• DC Supply IC Regulated 0-3V/45V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Digital Meters:
• Voltmeter 20V/200V DC.
• Ammeter 20mA/200uA DC.
Components are mounted on the panels are:
• Led (Red and Green)
• Diode 1N4007 and OA79
• Zener Diode 6.2V and 8.2V
• Diac DB3
• Voltage Control through Potentiometer.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
• No

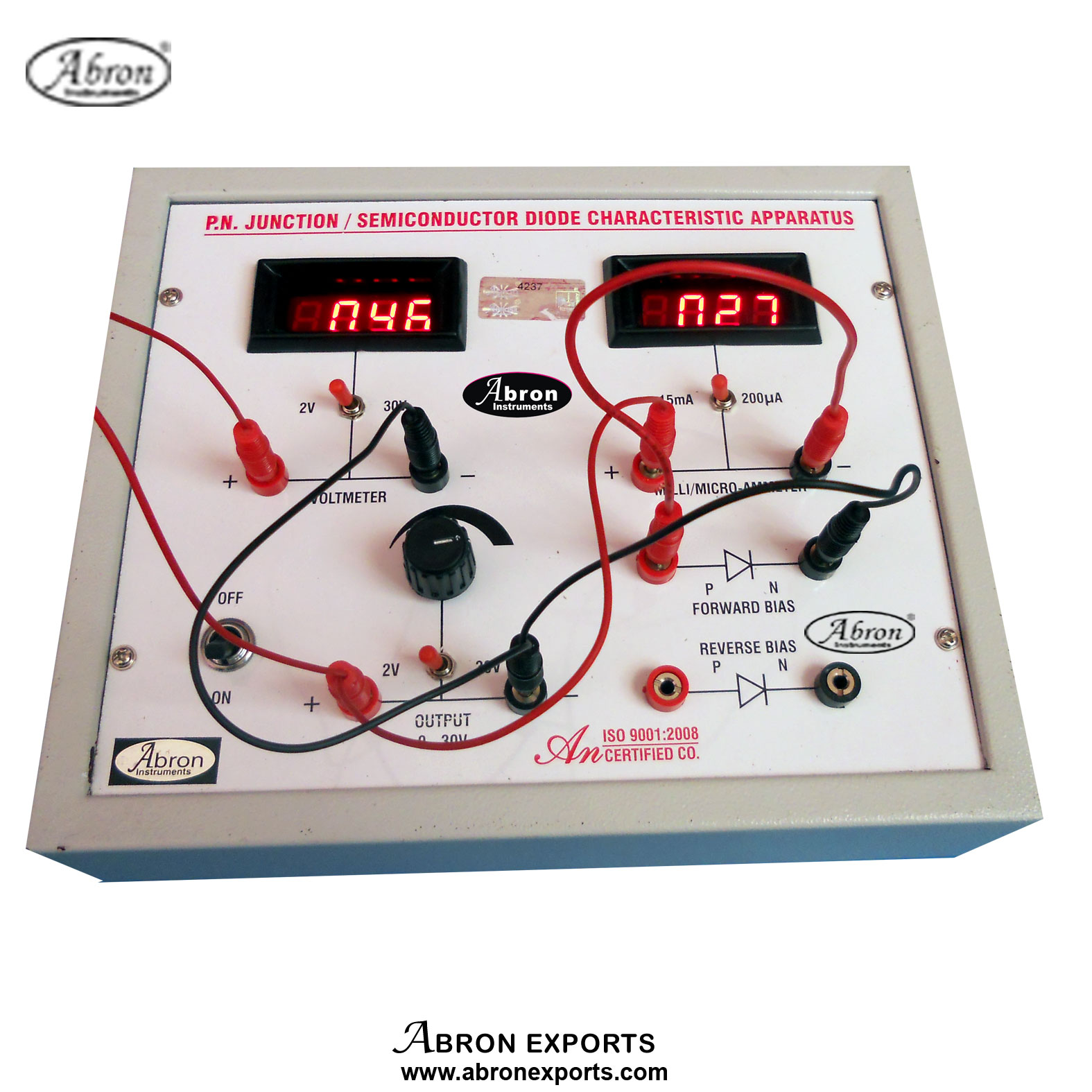

PBE-E336 SEMICONDUCTOR DEVICES CHARACTERISTICS (DIGITAL METERS)
In Stock
Semiconductor Devices Characteristics Digital Meters is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E336. TECHNICAL SPECIFICATIONS Power supplies. DC Supply IC Regulated 0-3V/45V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Digital Meters. Zener Diode 6.2V and 8.2V. Voltage Control through Potentiometer. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 12”x8” OPTIONAL ACCESSORIES.
