TECHNICAL SPECIFICATIONS
Power supplies:
• DC Supply IC Regulated 0-10V DC, 150mA.
• DC Supply IC Regulated 0-10V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Digital Meters:
• Voltmeter 2V/20V DC.
• Ammeter 200mA DC.
• Ammeter 20A DC
Components are mounted on the panels are:
• Photo Diode
• Photo Led Red
• Photo Transistor
• Photo Voltaic Cell
• Optocoupler MCT2E
• LDR
• Voltage Control through Potentiometer.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x10”
OPTIONAL ACCESSORIES:
• Table Lamp (Included)

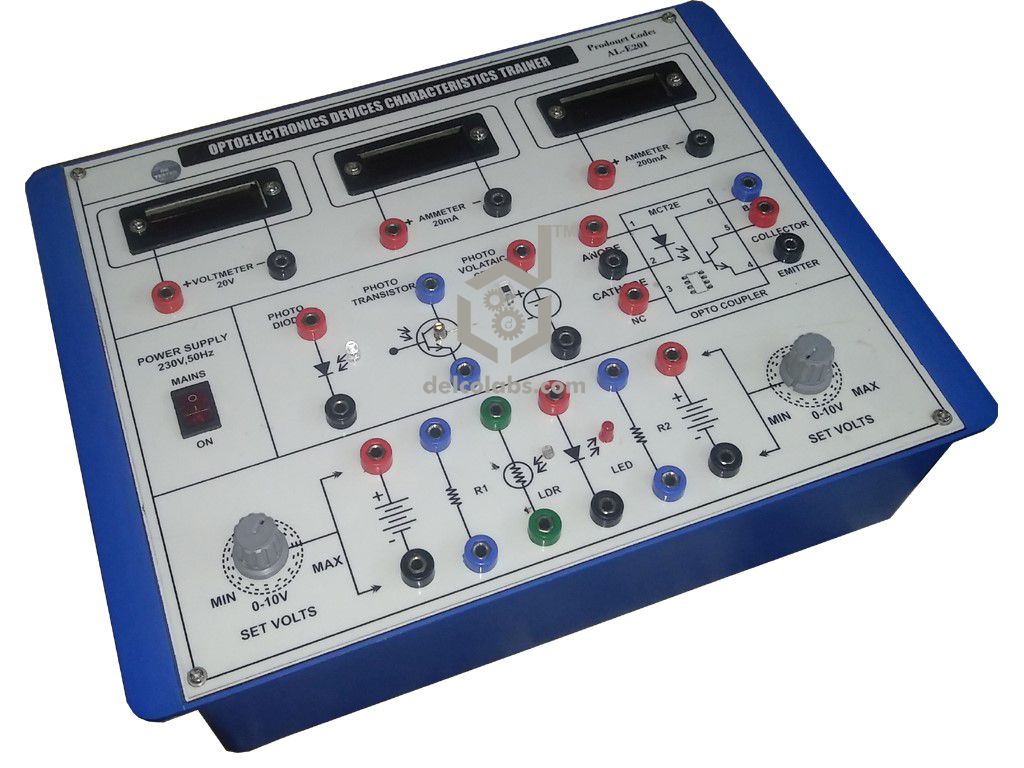

PBE-E201 OPTO ELECTRONICS DEVICES CHARACTERISTICS TRAINER (DIGITAL)
In Stock
Opto Electronics Devices Characteristics Trainer Digital is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E201. TECHNICAL SPECIFICATIONS Power supplies. DC Supply IC Regulated 0-10V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Digital Meters. Ammeter 20A DC Components are mounted on the panels are. Voltage Control through Potentiometer. Connections are brought out through 4mm Colored Sockets.
