TECHNICAL SPECIFICATIONS
Analog Meters:
• Ammeter 10mA DC.
• Ammeter 10mA DC.
• Voltmeter 10V DC.
Power Supplies:
• DC Supply IC Regulated 0-10V DC, 150mA.
• DC Supply IC Regulated 0-10V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• OPTOCOUPLER MCT2E
• Voltage Control through Potentiometer.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
• Multimeter

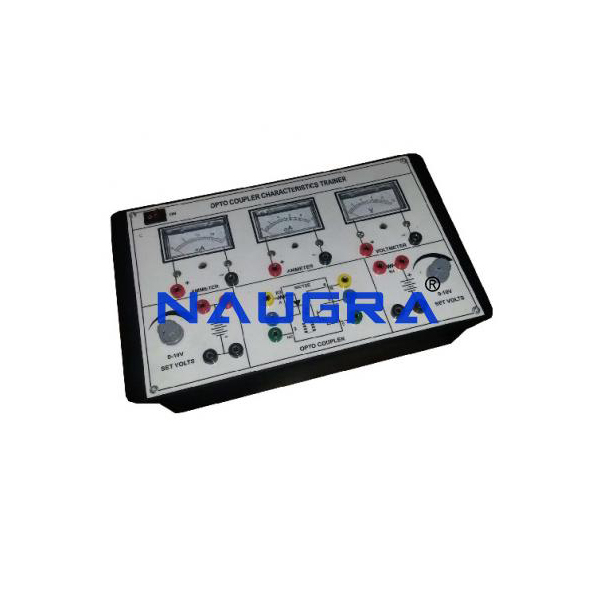

PBE-E055A OPTOCOUPLER CHARACTERISTICS (ANALOG METERS)
In Stock
Optocoupler Characteristics Analog Meters is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E055A. DC Supply IC Regulated 0-10V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Voltage Control through Potentiometer. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 12”x8” OPTIONAL ACCESSORIES. TECHNICAL SPECIFICATIONS Analog Meters.
