TECHNICAL SPECIFICATIONS
Digital Meters:
• Voltmeter 20V/2V DC.
• Ammeter 200mA/20mA DC.
• Ammeter 200uA/2mA DC.
Power Supplies:
• DC Supply IC Regulated +12V DC, 250mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• Transistor SL100
• Required Resistors
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x10”
OPTIONAL ACCESSORIES:
• Multimeter

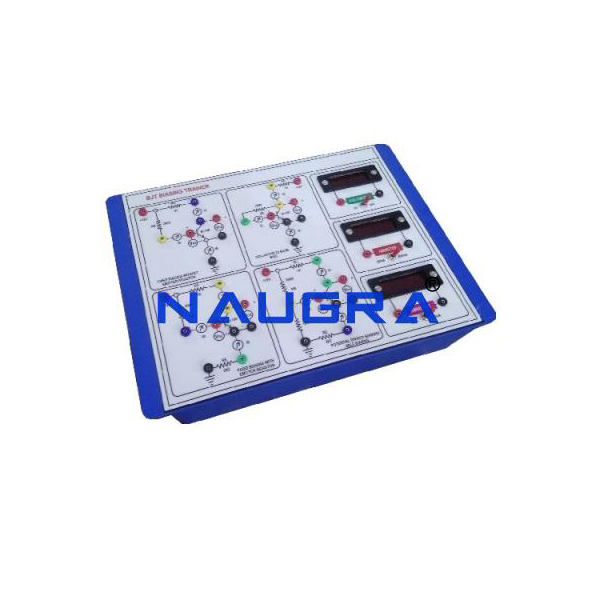

PBE-E052 BJT BIASING TRAINER (DIGITAL METERS)
In Stock
Bjt Biasing Trainer Digital Meters is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E052. DC Supply IC Regulated +12V DC, 250mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Required Resistors SALIENT FEATURES. Connections are brought out through 2mm Colored Sockets. Size of the trainer set 12”x10” OPTIONAL ACCESSORIES. TECHNICAL SPECIFICATIONS Digital Meters.
