TECHNICAL SPECIFICATIONS
Analog Meters:
• Voltmeter 30V AC.
• Ammeter 250mA DC.
• Voltmeter 30V DC.
Power Supplies:
• AC Isolated Power Supply 12-0-12 VAC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• Diode 1N4007
• Capacitors 1000uF and 100uF Controlled By Switches.
• Inductor 200mH
• Load Resistor through Rotary Switch
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
• No

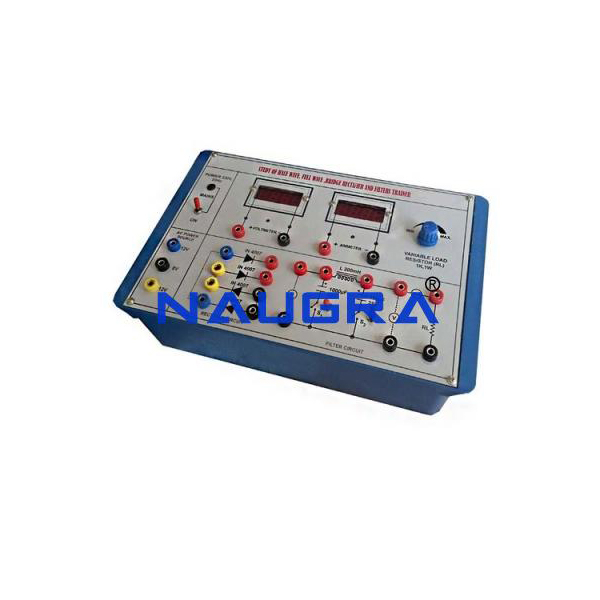

PBE-E031A HALF WAVE, FULL WAVE & BRIDGE RECTIFIER (ANALOG METERS)
In Stock
Half Wave, Full Wave & Bridge Rectifier Analog Meters is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E031A. AC Isolated Power Supply 12-0-12 VAC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Capacitors 1000uF and 100uF Controlled By Switches. Load Resistor through Rotary Switch SALIENT FEATURES. Connections are brought out through 4mm Colored Sockets.
