TECHNICAL SPECIFICATIONS
Digital Meters
1. Voltmeter 200V
2. Ammeter 2A
Power Supplies:
• 0-30V, 1A AC Isolated Power Supply.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• IC lm723
• Capacitor
• Transistor
• Resistor
• Bridge Rectifier BR1010
• Led
• Regulator
• Variable Resistor

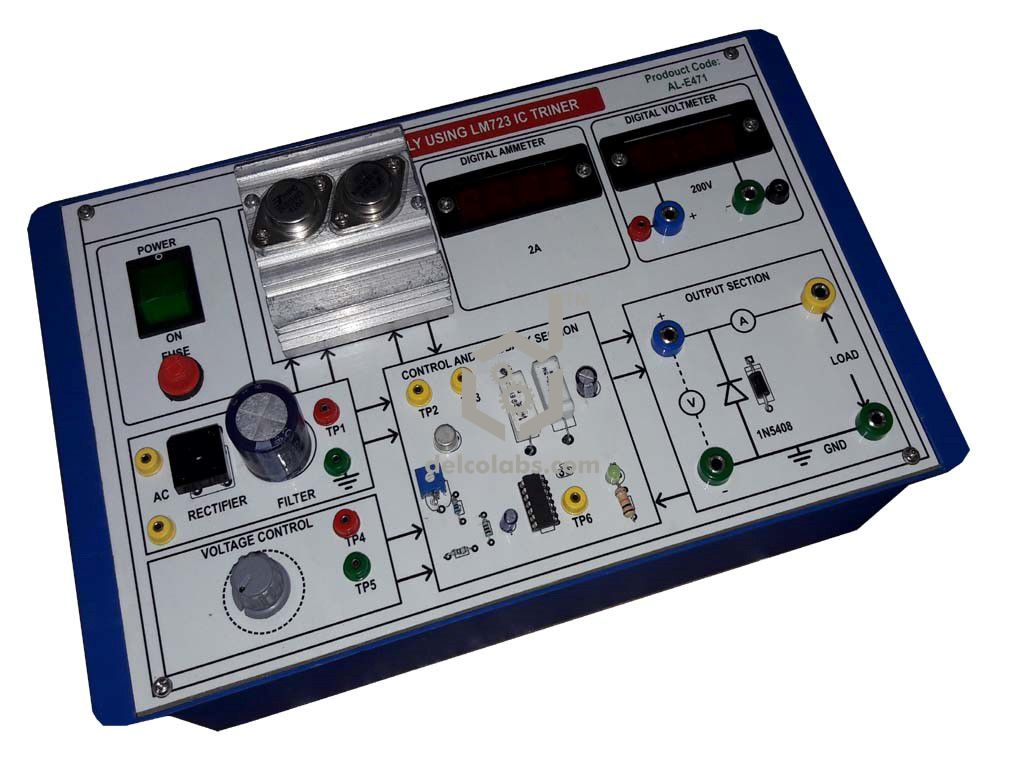

• Instrument comprises of AC Power Supply 0-30V,1A
• Two Digital Meters to measure Input & Output Voltage and Current.
• Blocks for Power Supply are given on board.
• One Block Power Transistor Circuit is given.
• Variable resistor is given for adjustment.
• Rectifier Circuit is given on board.
• Lm723 IC is given on board for Voltage and Current.
• One Filter circuit is given on board.
• One load regulation circuit is given on board for regulation.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• Multimeter
