TECHNICAL SPECIFICATIONS
• Analog Meters
1. Voltmeter 30V
2. Ammeter 250mA
Power supplies:
• 12-0-12 AC Isolated Power Supply.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• LM7812
• LM7912
• LM317
• LM337
• Load Resistor using Band switch
• Variable Resistor
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 2mm Colored Sockets.
• Patch Cords 2mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x8”
OPTIONAL ACCESSORIES:
• Multimeter

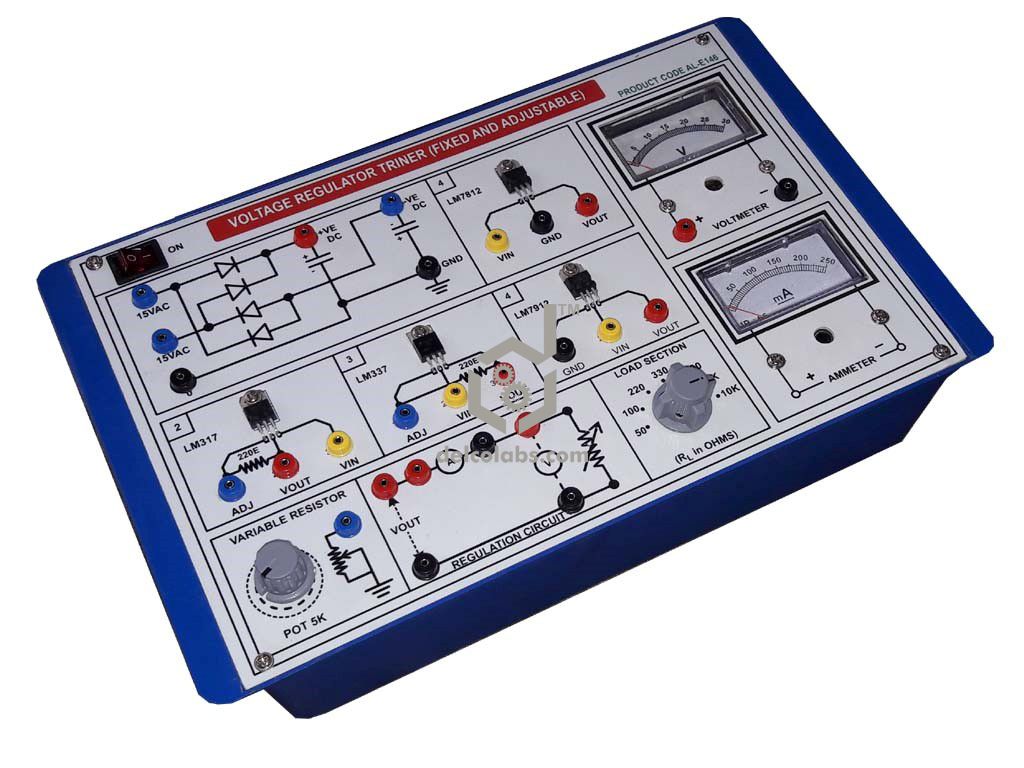

PBE-E025 THREE TERMINAL VOLTAGE REGULATOR TRAINER (FIXED AND ADJUSTABLE)
In Stock
Three Terminal Voltage Regulator Trainer Fixed And Adjustable is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E025. Ammeter 250mA Power supplies. 12-0-12 AC Isolated Power Supply. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Variable Resistor SALIENT FEATURES. Connections are brought out through 2mm Colored Sockets. Size of the trainer set 12”x8” OPTIONAL ACCESSORIES.
