TECHNICAL SPECIFICATIONS
Analog Meters:
• Ammeter 2.5mA/25mA DC.
• Voltmeter 50V DC.
Power supplies:
• DC Supply IC Regulated 0-50V DC, 150mA.
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
Components are mounted on the panels are:
• DIAC DB3
• Voltage Control through Potentiometer.
Salient Features:
• Instruction manual.
• Operated on Mains power 230V, 50Hz.
• Patch Cords 4mm.
• Supply provided through the 3 pin computer socket with appropriate fuse
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 10”x8”

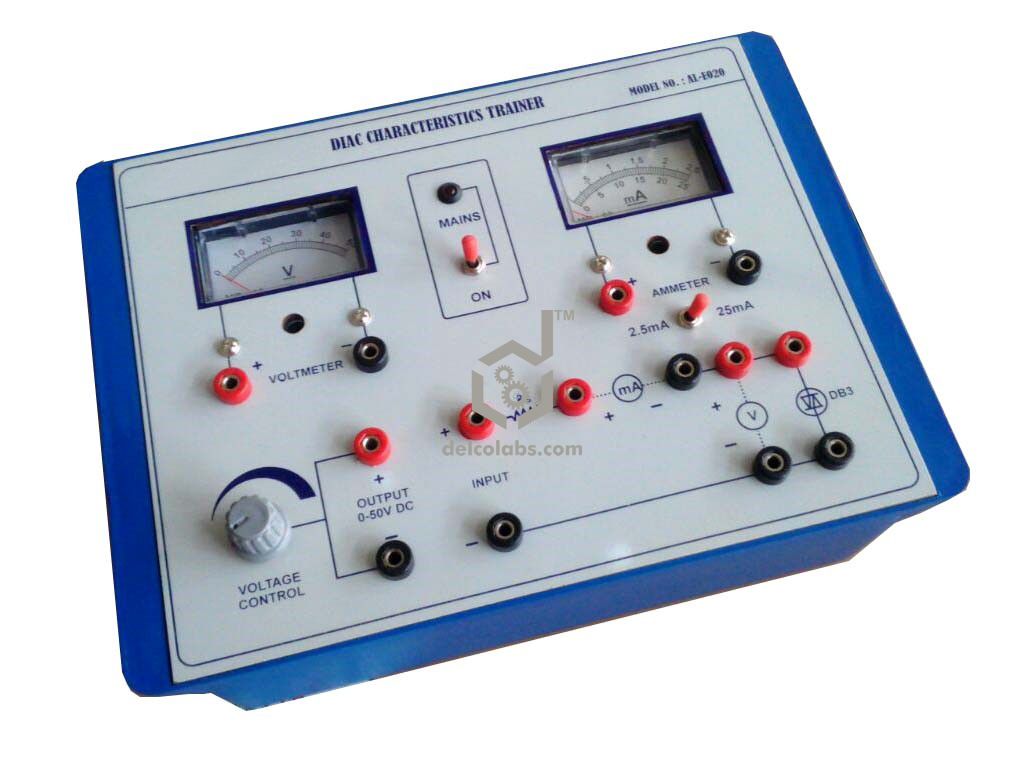

PBE-E020A DIAC CHARACTERISTICS TRAINER (ANALOG)
In Stock
Diac Characteristics Trainer Analog is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E020A. DC Supply IC Regulated 0-50V DC, 150mA. Voltage Control through Potentiometer. Operated on Mains power 230V, 50Hz. Supply provided through the 3 pin computer socket with appropriate fuse. Size of the trainer set 10”x8”. TECHNICAL SPECIFICATIONS Analog Meters. Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
