TECHNICAL SPECIFICATIONS
Digital Meters:
• Ammeter 15mA/150uA DC.
• Voltmeter 15V DC.
Power Supplies:
• DC Supply IC Regulated 0-15V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• Zener Diode 5.1V
• Zener Diode 6.2V
• Zener Diode 8.2V
• Voltage Control through Potentiometer.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 10”x 8”
OPTIONAL ACCESSORIES:
• Multimeter

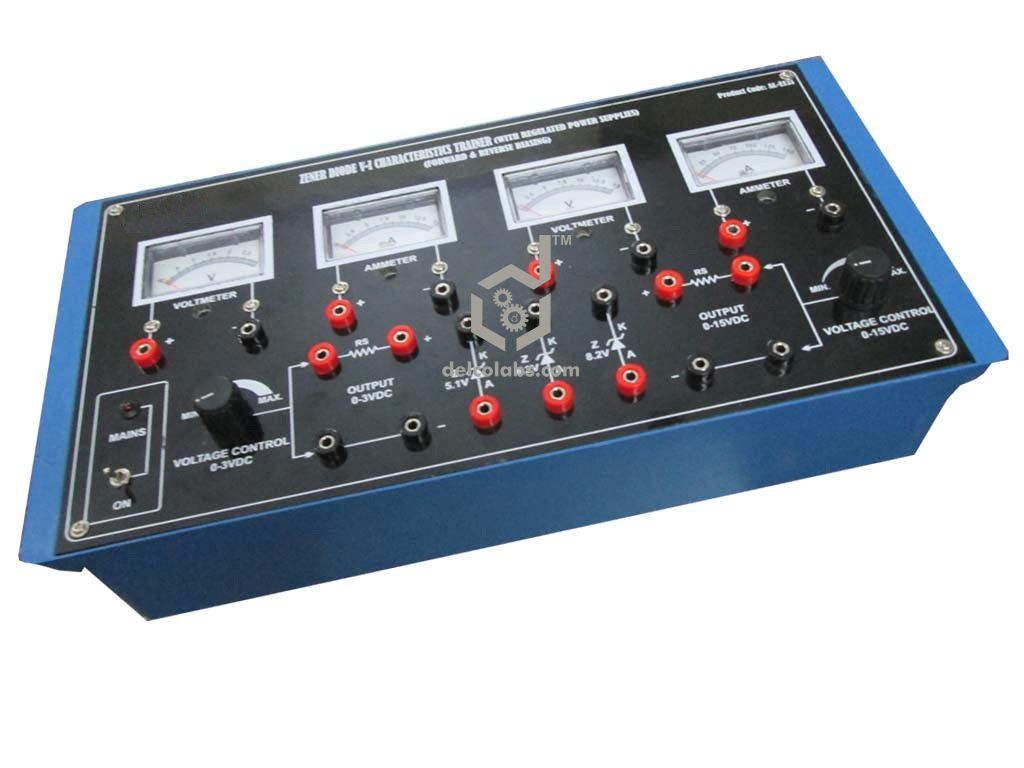

PBE-E005C ZENER DIODE CHARACTERISTICS TRAINER
In Stock
Zener Diode Characteristics Trainer is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E005C. DC Supply IC Regulated 0-15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Voltage Control through Potentiometer. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 10”x 8” OPTIONAL ACCESSORIES. TECHNICAL SPECIFICATIONS Digital Meters.
