TECHNICAL SPECIFICATIONS
Analog Meters:
• Voltmeter 3V DC.
• Ammeter 20mA DC.
• Voltmeter 15V DC.
Power Supplies:
• DC Supply IC Regulated 0-3V DC, 150mA.
• DC Supply IC Regulated 0-15V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• FET BFW10
• Voltage Control through Potentiometer.
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• No

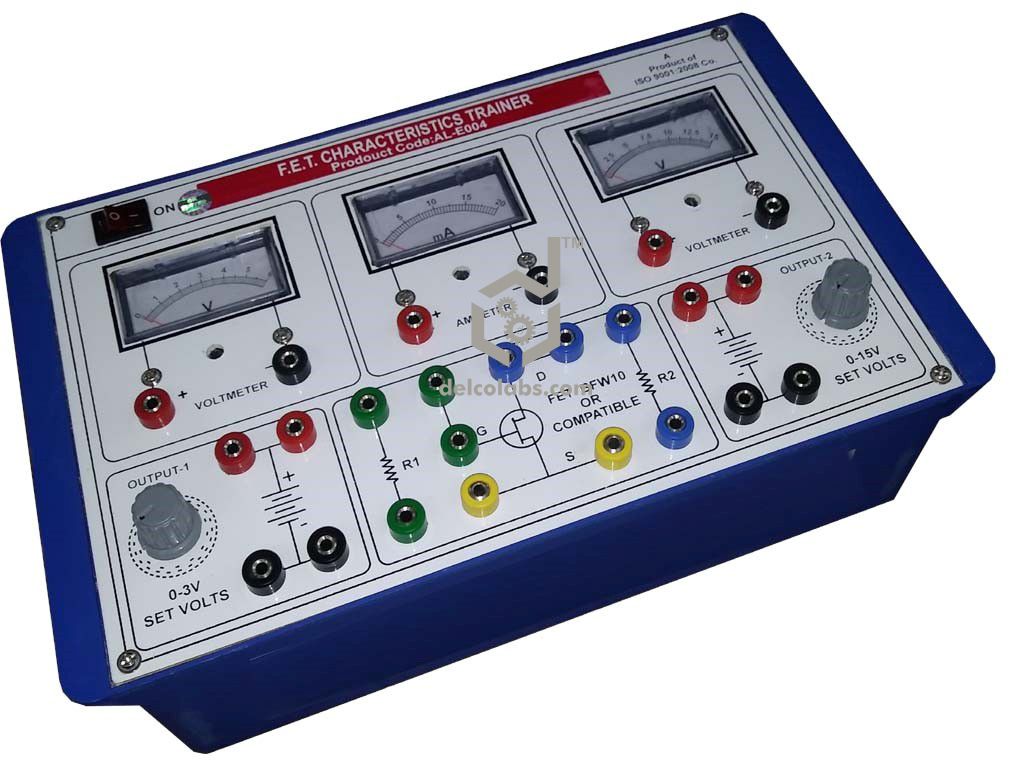

PBE-E004A FET CHARACTERISTICS (ANALOG METERS)
In Stock
Fet Characteristics Analog Meters is an SSI India product in the BASIC ELECTRONICS LAB category. Key specifications include SKU: PBE-E004A. DC Supply IC Regulated 0-3V DC, 150mA. DC Supply IC Regulated 0-15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Voltage Control through Potentiometer. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 12”x 8” OPTIONAL ACCESSORIES.
