TECHNICAL SPECIFICATIONS
Power Supplies:
• DC Power Supply IC Regulated +15V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Digital AC Voltmeter Meters:
• 200mV AC
• 20V AC
Components are mounted on the panels are:
• FET BFW10
• Resistors
• Capacitors
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• Function Generator
• CRO

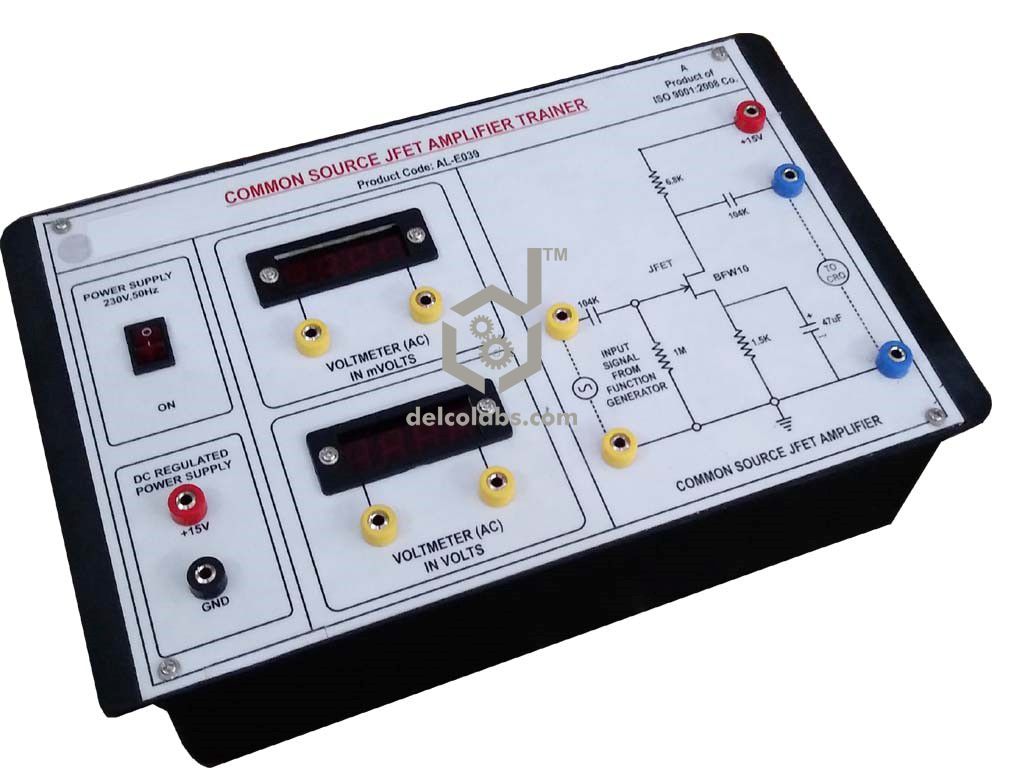

PAO-E039B FET COMMON SOURCE AMPLIFIER TRAINER WITH AC MILLI VOLTMETER
In Stock
Fet Common Source Amplifier Trainer With AC Milli Voltmeter is an SSI India product in the AMPLIFIER AND OSCILLATORS category. Key specifications include SKU: PAO-E039B. TECHNICAL SPECIFICATIONS Power Supplies. DC Power Supply IC Regulated +15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Digital AC Voltmeter Meters. 20V AC Components are mounted on the panels are. Capacitors SALIENT FEATURES. Connections are brought out through 4mm Colored Sockets.
