TECHNICAL SPECIFICATIONS
Power Supplies:
• DC Power Supply IC Regulated +15V DC, 150mA.
• Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
• Transistors
• Resistors
• Capacitors
SALIENT FEATURES:
• Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
• Fuse for Short Circuit protection
• Instruction manual.
• Connections are brought out through 4mm Colored Sockets.
• Patch Cords 4mm.
• The trainer is housed in ABS Plastic cabinet.
• Size of the trainer set 12”x 8”
OPTIONAL ACCESSORIES:
• Function Generator
• AC Milli Voltmeter
• CRO

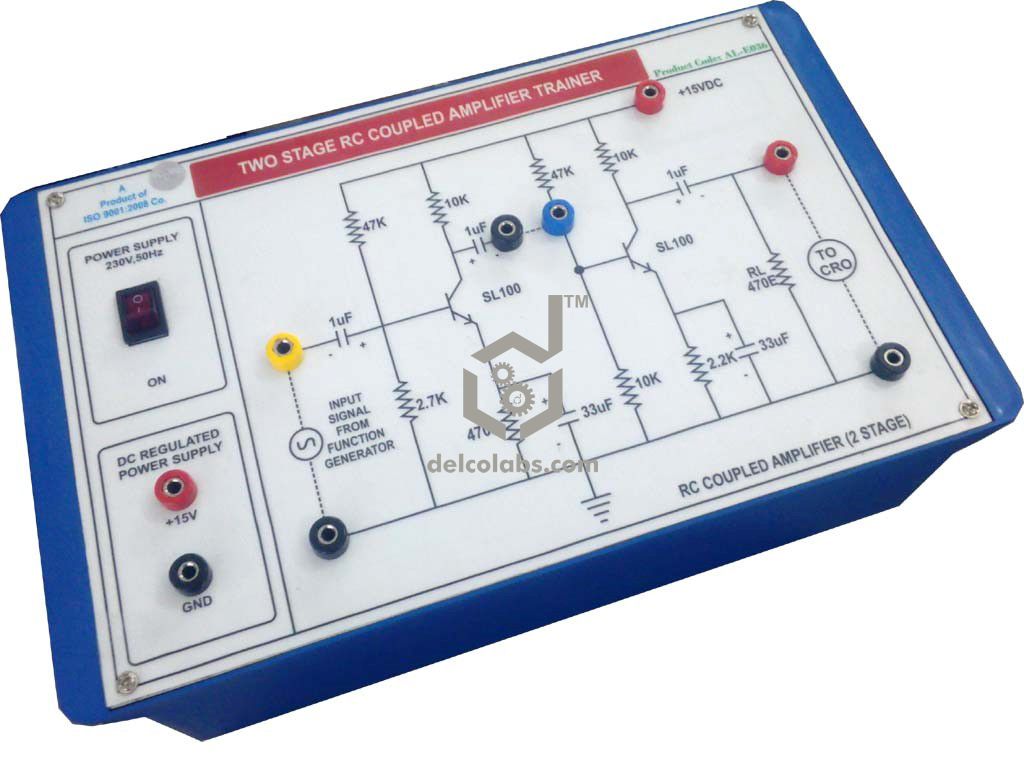

PAO-E036 RC COUPLED AMPLIFIER MULTISTAGE TRAINER
In Stock
Rc Coupled Amplifier Multistage Trainer is an SSI India product in the AMPLIFIER AND OSCILLATORS category. Key specifications include SKU: PAO-E036. TECHNICAL SPECIFICATIONS Power Supplies. DC Power Supply IC Regulated +15V DC, 150mA. Operated on Mains power 230V, 50Hz +10% Components are mounted on the panels are. Capacitors SALIENT FEATURES. Connections are brought out through 4mm Colored Sockets. Size of the trainer set 12”x 8” OPTIONAL ACCESSORIES.
