TECHNICAL SPECIFICATIONS

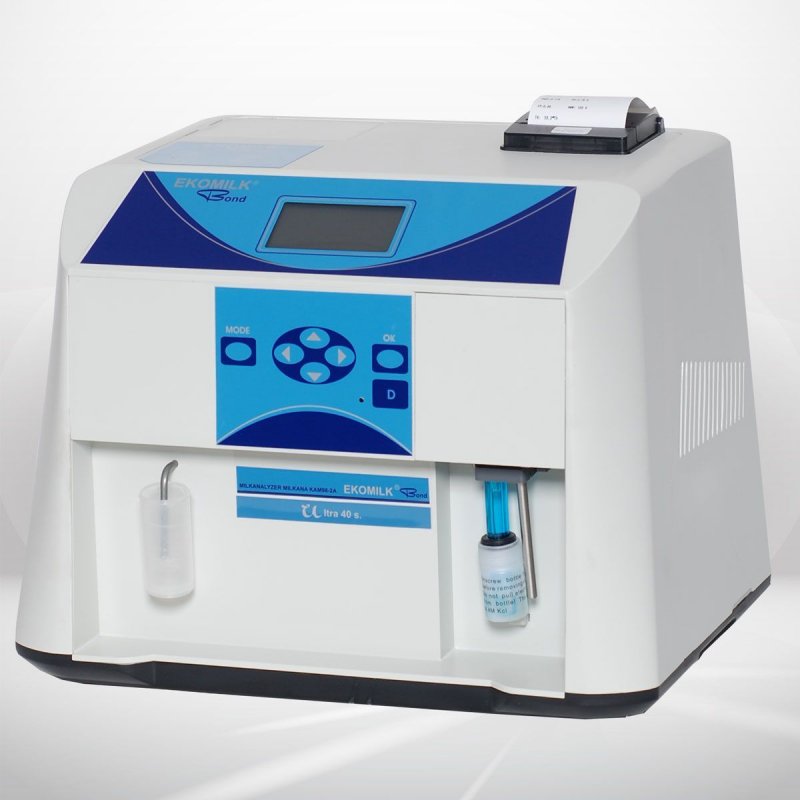

| NAME OF THE MODEL | Ekomilk Bond Standard | Ekomilk Bond Total |
| Fat | 0.5% – 12% ±0.1% | 0.5% – 12% ±0.1% |
| Solids non fat (SNF) | 6% – 12% ±0.2% | 6% – 12% ±0.2% |
| Milk density | 1.0260 g/cm3 – 1.0330 g/cm3 ±0,0005 g/cm3 | 1.0260 g/cm3 – 1.0330 g/cm3 ±0,0005 g/cm3 |
| Protein | 2% – 6% ±0.2% | 2% – 6% ±0.2% |
| Freezing Point | from 0 to -1.000°C ±0.015°C | from 0 to -1.000°C ±0.015°C |
| Added water to milk | 0% – 60% ±5% | 0% – 60% ±5% |
| Lactose | 0.5% to 7% ±0.2%/optional/ | 0.5% to 7% ±0.2% |
| Conductivity | 2 – 10 mS/cm ±0.2% mS/cm (18°C)/optional/ | 2 – 10 mS/cm ±0.2% mS/cm (18°C) |
| pH + t°C + titratable acidity
|
0,00 – 10 pH ±0,02
0 – 50°C ±0.1°C °Th, % La, °SH, °D |
|
| Ultrasonic Processor /deaerator/ | Available | Not Available |
| Integrated Thermal Printer | Optional | Available |
| Data Collection System | Available | Available |
| Measuring time | 40 sec. | 40 sec. |
| ENVIRONMENTAL CONDITIONS | |
| Ambient air temperature | 15°C – 35°C |
| Milk temperature | 5°C – 35°C |
| Relative humidity | 30% – 80% |
| POWER SUPPLY | |
| AC Power Supply voltage | 220V ±5% / Optional – 110V +10%/-15% |
| Power Consumption | 30W max |
| MECHANICAL PARAMETERS | |
| Dimensions (WxDxH) | 380 x 310 x 285 mm |
| Weight | < 5.5 kg |
