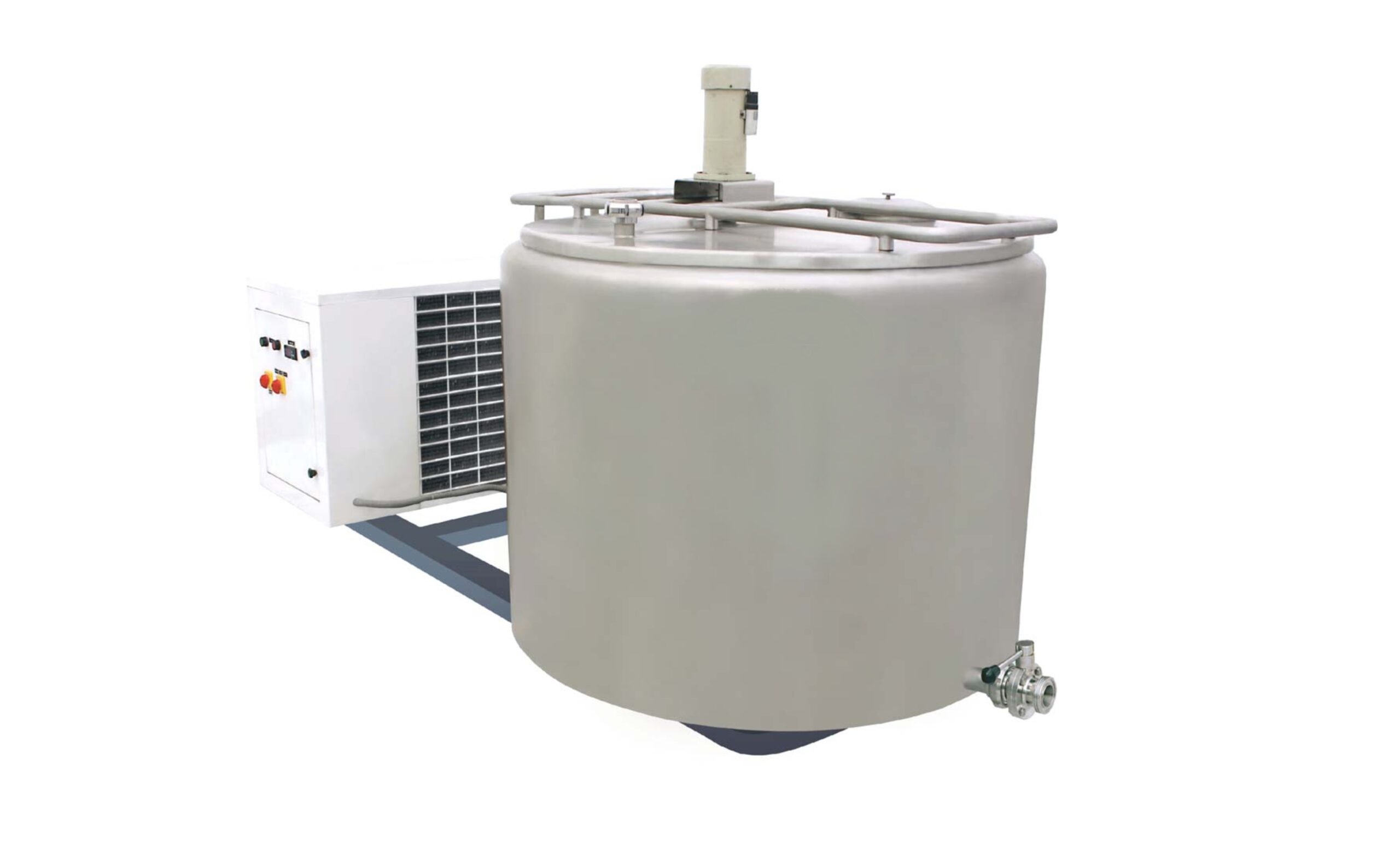

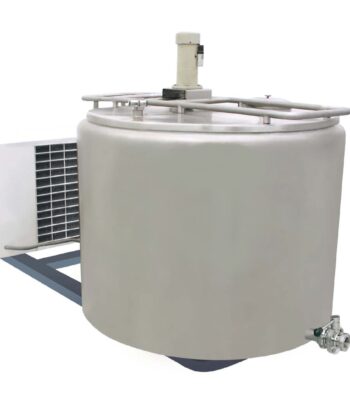

BMC-MILK COOLING TANK/BULK MILK COOLERS

BMC-MILK COOLING TANK/BULK MILK COOLERS

In Stock

Cooling Tank/Bulk Milk Coolers is an SSI India product in the Bulk Milk Cooler category. DESCRIPTION SSI-BMC- 100 SSI-BMC- 200 SSI-BMC- 300 SSI-BMC- 500 SSI-BMC- 1000 SSI-BMC- 2000 SSI-BMC- 2500 SSI-BMC- 5000 A. REFRIGERATION UNIT:- 100 LTRS. 2000 liters 2500 LTRS 5000 liters 1. TYPE DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION 2. OF COMPRESSORS ONE ONE ONE ONE ONE TWO TWO TWO 5.

Wishlist
Compare
Categories:,

MILK COOLING TANK/BULK MILK COOLERS

Technical Specifications

SR.

NO.

 DESCRIPTION SSI-BMC- 100 SSI-BMC- 200 SSI-BMC- 300 SSI-BMC- 500 SSI-BMC- 1000 SSI-BMC- 2000 SSI-BMC- 2500 SSI-BMC- 5000
A. REFRIGERATION UNIT:-
100 LTRS. 200 LTRS. 300 LTRS. 500 LTRS. 1000 LTRS. 2000 liters 2500 LTRS 5000 liters
1. TYPE DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION DIRECT EXPANSION
2. MAKE OF COMPRESSOR EMERSON / DANFOSS EMERSON / DANFOSS EMERSON / DANFOSS EMERSON / DANFOSS EMERSON / DANFOSS EMERSON / DANFOSS EMERSON / DANFOSS EMERSON / DANFOSS
3. TYPE OF COMPRESSORS RECIP / SCROLL RECIP / SCROLL RECIP / SCROLL RECIP / SCROLL RECIP / SCROLL RECIP / SCROLL RECIP / SCROLL RECIP /SCROLL
4. NO. OF COMPRESSORS ONE ONE ONE ONE ONE TWO TWO TWO
5. COMPRESSOR COOLING CAPACITY 1285 KCAL/HR 2355 KCAL/HR 2355 KCAL/HR 4788 KCAL/HR 7535 KCAL/HR 7535 KCAL/HR 7535 KCAL/HR 19100 KCAL/HR
6. TYPE OF REFRIGERANT R-22, 404, 407C R-22, 404, 407C R-22, 404, 407C R-22, 404, 407C R-22, 404, 407C R-22, 404, 407C R-22, 404, 407C R-22, 404, 407C
7. NO. OF FAN ONE ONE ONE ONE ONE TWO TWO FOUR
B. DESIGN PARAMETER
CAPACITY 100 LTRS. 200 LTRS. 300 LTRS. 500 LTRS. 1000 LTRS. 2000LTRS. 2500 LTRS. 5000 LTRS.
1. AMBIENT TEMP. 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C 38 DEG.C to 45 DEG.C
2. COOLING TIME Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours Less Then 3 hours & 3 hours
3. EVAPORATOR COOLING SURFACE AREA More Then required More Then required More Then required More Then required More Then required More Then required More Then required More Then required
4. MILK TEMP. RANGE 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG.
5. POWER REQUIREMENT ONE PHASE ONE PHASE ONE PHASE ONE PHASE/ THREE PHASE ONE PHASE/ THREE PHASE ONE PHASE/ THREE PHASE ONE PHASE/ THREE PHASE THREE PHASE
C. MILK TANK AISI 304 S.S.
CAPACITY 100 LTRS. 200 LTRS. 300 LTRS. 500 LTRS. 1000 LTRS. 2000 2500 5000 LTRS.
1. GROSS CAPACITY 110 LTRS. 220 LTRS. 330 LTRS. 550 LTRS. 1100 LTRS. 2200 2550 5500 LTRS.
2. MATERIAL OF CONSTRUCTION AISI S.S.304 AISI S.S.304 AISI S.S.304 AISI S.S.304 AISI S.S.304 AISI S.S.304 AISI S.S.304 AISI S.S.304

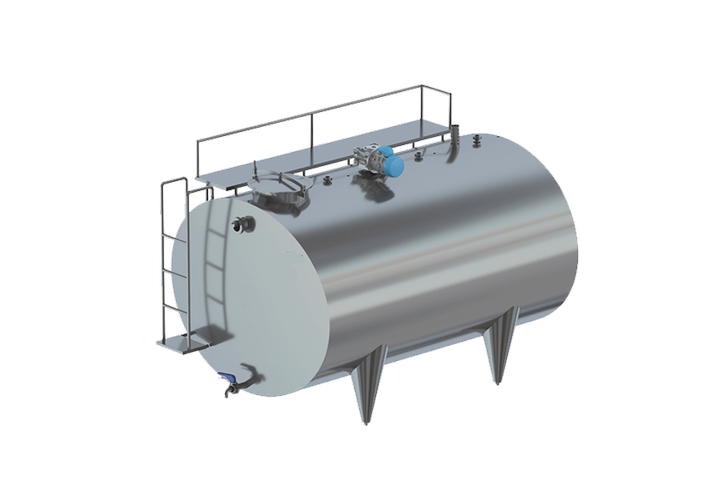

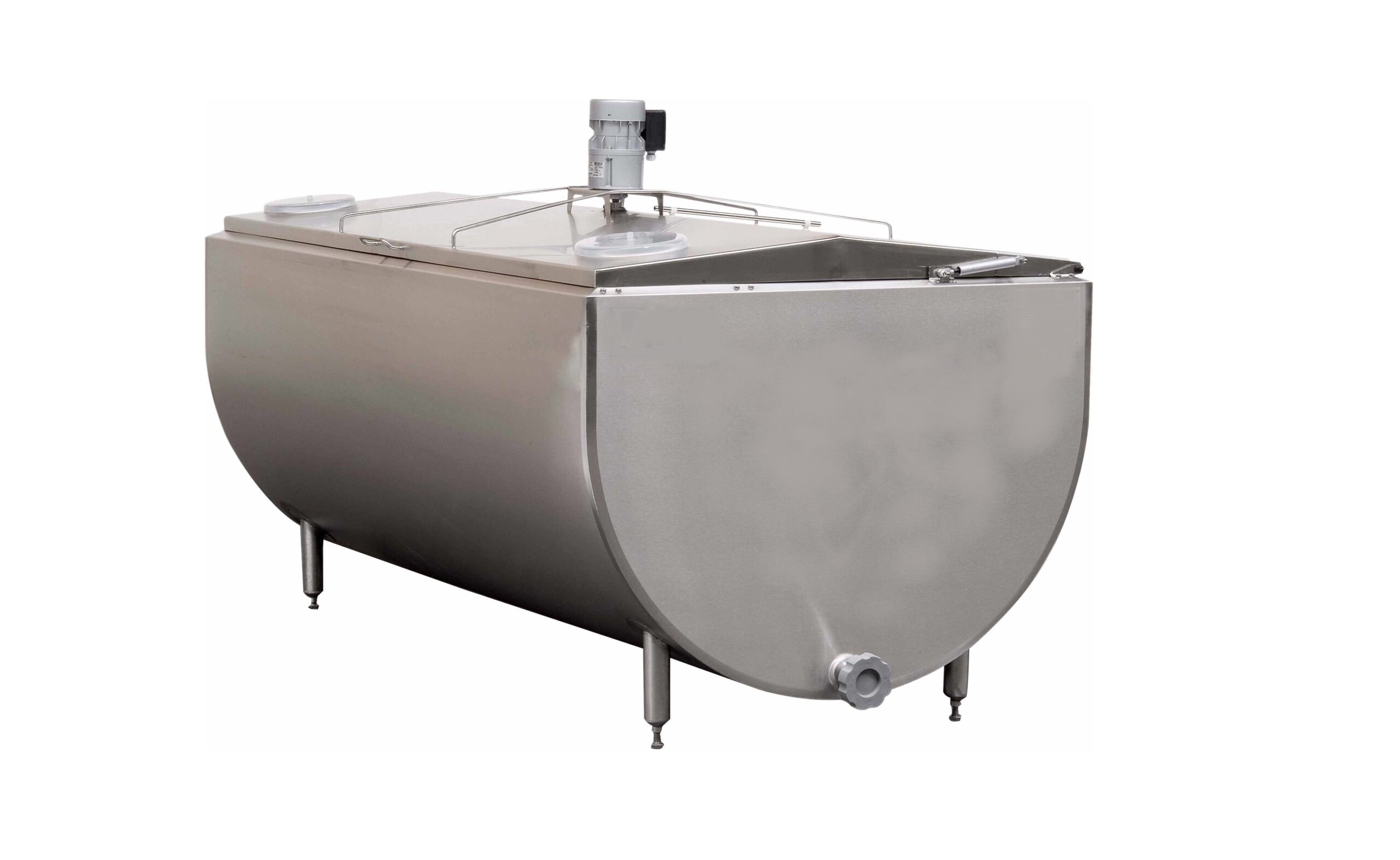

3. TYPE OF TANK CIRCULAR VERTICAL CIRCULAR VERTICAL CIRCULAR VERTICAL CIRCULAR VERTICAL / HORIZONTAL SEMI CYLINDRICAL CIRCULAR VERTICAL / HORIZONTAL SEMI CYLINDRICAL HORIZONTAL SEMI CYLINDRICAL / HORIZONTAL ELEPTICAL CLOSE HORIZONTAL SEMI CYLINDRICAL / HORIZONTAL ELEPTICAL CLOSE HORIZONTAL ELEPTICAL CLOSE
4. THICKNESS OFINNER SHEET 1.5 MM / 2 MM 1.5 MM / 2 MM 1.5 MM / 2 MM 2 MM 2 MM 2 MM 2 MM 2 MM
5. THICKNESS OF OUTER SHEET 1 MM / 1.5 MM 1 MM / 1.5 MM 1 MM / 1.5 MM 1.5 MM 1.5 MM 1.5 MM 1.5 MM 1.5 MM
6. RPM & NO. OF AGITATOR 19-28 / ONE 19-28 / ONE 19-28 / ONE 19-28 / ONE 19-28 / ONE 19-28 / ONE 19-28 / ONE 19-28 / ONE
7. CIP SYSTEM MANUAL MANUAL MANUAL MANUAL MANUAL MANUAL/SPRAY BALL MANUAL/SPRAY BALL SPRAY BALL
8. TYPE OF INSULATION Polyurethane High Density PolyurethaneHigh Density Polyurethane High Density Polyurethane High Density Polyurethane High Density Polyurethane High Density Polyurethane High Density Polyurethane High Density
9. THICKNESS OF INSULATION 50 MM to 120 MM 50 MM to 120 MM 50 MM to 120 MM 50 MM to 120 MM 50 MM to 120 MM 50 MM to 120 MM 50 MM to 120 MM 50 MM to 120 MM
D. CONNECTED LOAD:
CAPACITY 100 LTRS. 200 LTRS. 300 LTRS. 500 LTRS. 1000 LTRS. 2000 / 2500 LTRS. 2500 LTRS. 5000 LTRS.
1. COMPRESSOR AMP./WATT 3.1 AMP./ 685 WATT 4.7 AMP/ 1020 WATT 4.7 AMP/ 1020 WATT 7.8 AMP/ 1750 WATT 13.6 x 4.9 AMP / 2720 WATT 6.1 AMP/ 3300 WATT 6.1 AMP/ 3300 WATT 13.3 AMP/ 7580 WATT
2. AGITATOR AMP. ON LOAD 0.7 AMP 0.7 AMP 0.7 AMP 1 to 0.7 AMP 1 AMP 1 AMP 1 AMP 1 AMP
3. AGITATOR AMP with OUT LOAD 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP 0.35 AMP / 0.1 AMP
4. FAN LOAD 0.26 to 0.85 AMP 0.26 to 0.85 AMP 0.26 to 0.85 AMP 0.26 to 0.85 AMP 0.26 to 0.85 AMP 0.26 to 0.85 AMP 0.26 to 0.85 AMP 0.26 to 0.85 AMP
5. RECOMMEND SERVO & D.G.SET 3 KVA 3 KVA 3 KVA 5 KVA 7.5 KVA 15 KVA 15 KVA 25 KVA
6. UNIT CONSUMED ACORDING CALCULATION 1000      W CONSUM          1UNIT    /HOURS
